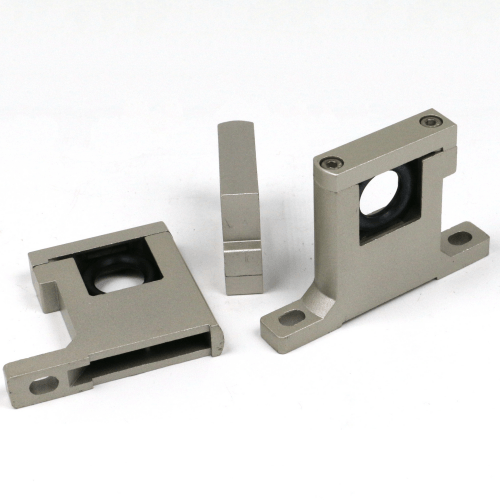

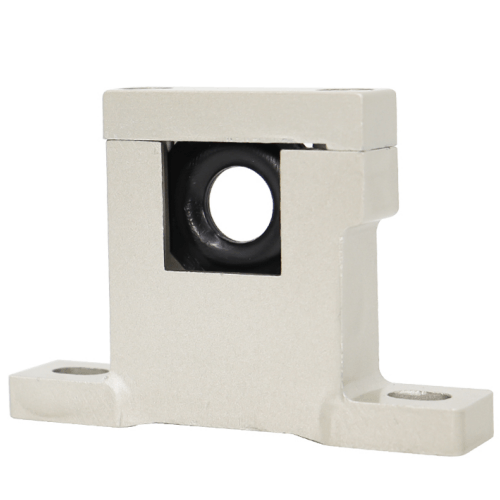

Airtac GA-P1 Bracket GA300U-P1
2. Offers multiple bracket configurations for connecting pressure regulators and lubricators. Available in T-type, L-type, and U-type configurations to accommodate diverse piping layouts.
Category: Bracket , Brand: AIRTAC , Series: GA-P1
AirTAC GA-P1 Bracket GA300U-P1 Technical Specifications
- Model: GA300U-P1 (GA-P1 series)
- Type: Universal linear guide mounting bracket
- Material: ADC12 aluminum alloy
- Surface treatment: Anodized (black)
- Load capacity: Static 2,500N, Dynamic 1,800N
- Mounting hole pattern: 30mm × 30mm grid
- Thread specifications: M6×1.0 tapped holes (4 positions)
- Rail compatibility: HGH15CA/HGH20CA/HGW15CC series
- Operating temperature: -20℃ to 100℃
- Weight: 480±10g
- Dimensions: 90mm(L) × 60mm(W) × 25mm(H)
- Flatness tolerance: ≤0.02mm
- Hardness: 75-80 HB
Precision-machined mounting bracket designed for high-accuracy linear motion systems. Features symmetrical mounting holes for flexible configuration and integrated reinforcement ribs for enhanced structural rigidity. Compatible with multiple rail sizes through adjustable shim installation (sold separately).
- CNC machine tool axis support systems
- Robotic arm joint reinforcement structures
- Automated optical inspection (AOI) equipment
- High-speed pick-and-place unit mounting
- Semiconductor wafer handling mechanisms
Installation guidelines:
Use M6×12mm SHCS (socket head cap screws) with 4.4Nm torque specification.
Apply thread-locking compound for vibration-prone environments.
Ensure rail alignment within 0.05mm/m using precision level during assembly.
