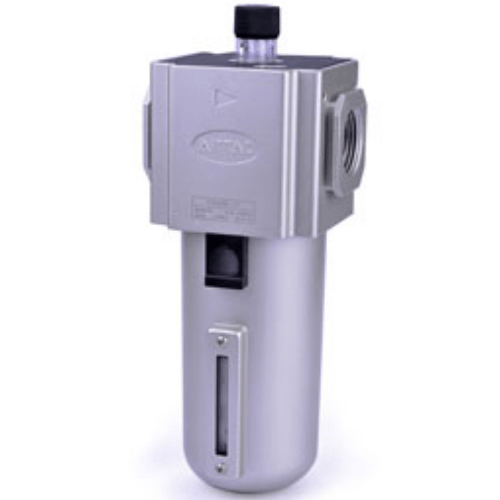

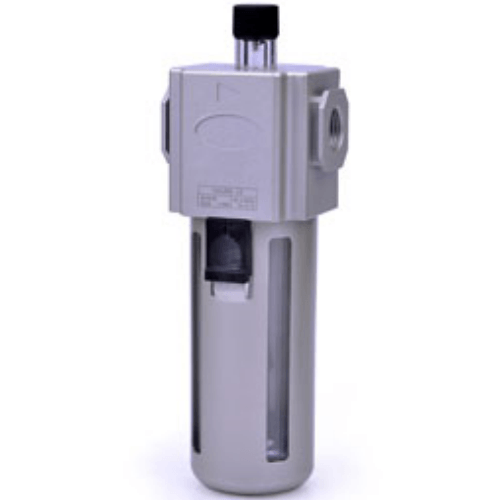

Airtac GAL Lubricator GAL200N06
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL200N06 Automatic Lubricator Specifications
- Model: GAL200N06
- Type: Pneumatic oil mist lubricator with adjustable drip rate
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.3–1.0 MPa
- Oil cup capacity: 200 cm³ (transparent polycarbonate reservoir)
- Oil output: 5-60 drops/min (micrometer adjustment)
- Viscosity range: 32-150 cSt (ISO VG32 to VG150)
- Weight: 480g ±5% (empty), 680g ±5% (filled)
- Dimensions: 98mm(L) × 76mm(W) × 142mm(H)
- Body material: Anodized aluminum alloy
- Seal material: NBR + Viton hybrid
- Temperature range: 5℃ to 60℃ (operating fluid temp)
- Air consumption: ≤0.5 NL/min (at 0.5 MPa)
- Orientation: Vertical installation required (±15° tolerance)
High-precision inline lubricator featuring a magnified sight glass with anti-UV coating for clear oil level monitoring. The dual-chamber design prevents oil backflow during pressure fluctuations. Includes a built-in check valve and 40μm sintered bronze filter. Requires ISO Class 19/17/14 compressed air per ISO 8573-1.
- Pneumatic cylinder maintenance in automated assembly lines
- Air tool lubrication in automotive repair stations
- Packaging machine chain drive systems
- Textile machinery pneumatic actuators
- Food processing equipment (FDA-grade oil compatible version available)
Maintenance protocol:
Refill when oil level drops below 1/3 capacity. Perform monthly bowl
cleaning using kerosene. Adjust drip rate clockwise for reduced output
(1 full turn ≈ 15 drop reduction). Always pressurize system before adjustment.
| Property | Property Value |
|---|---|
| sku | GAL200N06 |
| Port Size | PT1/8 |
