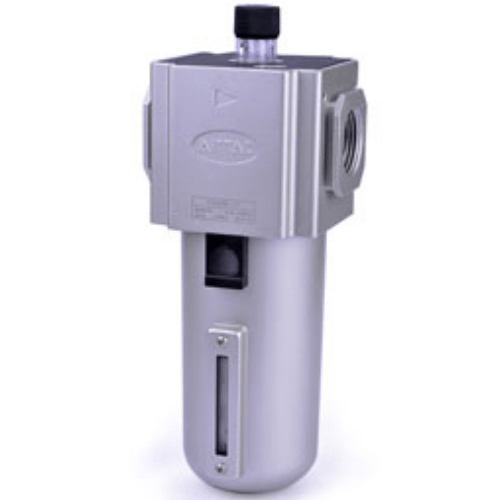

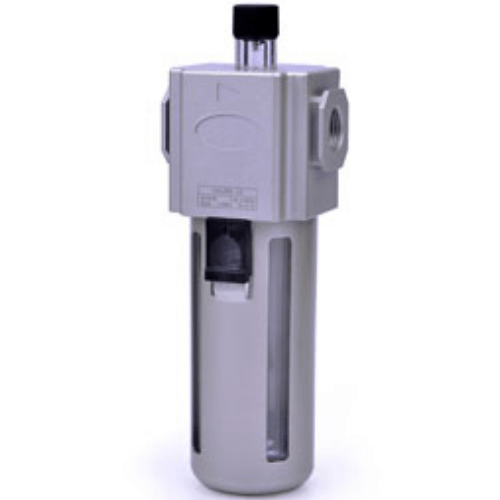

Airtac GAL Lubricator GAL300N10J
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL300N10J Lubricator Technical Specifications
- Model: GAL300N10J
- Type: Micro-fog adjustable lubricator
- Capacity: 300ml transparent oil cup
- Operating pressure: 0.05–1.0 MPa
- Oil viscosity range: 30–1500 cSt (ISO VG15-VG1500)
- Port size: Rc1/4 (NPT1/4 optional)
- Body material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Temperature range: -10℃ to 60℃
- Weight: 520g ±5% (with oil)
- Dimensions: 200mm(H) × Φ80mm (oil cup diameter)
- Drip rate adjustment: 0–120 drops/min
- Max flow capacity: 800 NL/min
- Filter element: 40μm stainless steel mesh
- Relief valve setting: 0.3 MPa (factory preset)
Precision pneumatic lubricator featuring visual oil monitoring through graduated polycarbonate reservoir. Incorporates anti-clogging dual-stage filtration (40μm + 100 mesh) and pressure-compensated oil feed system. The rotating collar enables precise drip control even under fluctuating airflow conditions.
- Pneumatic cylinder lubrication in automated assembly lines
- Air tool maintenance in automotive repair stations
- Packaging machinery chain lubrication systems
- Textile machine pneumatic component protection
- Food processing plant actuator maintenance (food-grade oil compatible)
Installation protocol:
Mount vertically upstream of FRL units using bracket clamp (included).
Maintain 1.5× port diameter straight piping before inlet.
Prime by rotating adjustment knob counterclockwise until oil appears in sight glass,
then set to 1 drop/2-3 cycles for general applications.
Maintenance alert:
Replace oil annually or after 250 operating hours.
Never use petroleum-based oils with polycarbonate components.
Drain condensation weekly via bottom purge valve.
| Property | Property Value |
|---|---|
| sku | GAL300N10J |
| Port Size | PT3/8 |
