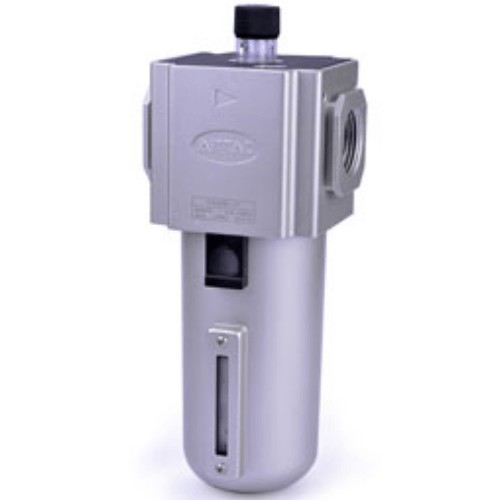

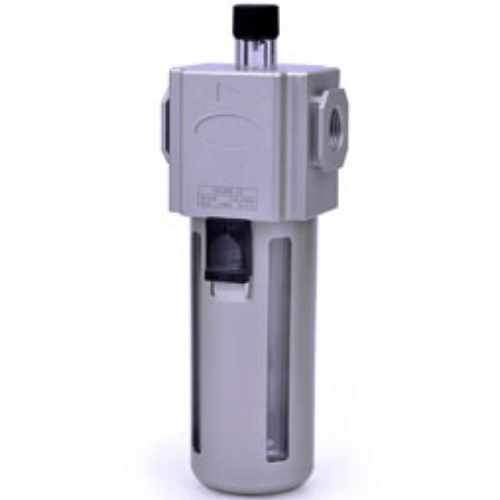

Airtac GAL Lubricator GAL40010
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL40010 Micro-Lubricator Specifications
- Model: GAL40010
- Type: Pressure-balanced piston lubricator
- Capacity: 400 cm³
- Operating pressure: 0.05–1.0 MPa
- Oil output adjustment: 10–60 drops/min (visual indicator)
- Port size: Rc1/4 (BSPP 1/4")
- Body material: Anodized aluminum alloy
- Oil cup material: Transparent PC (polycarbonate)
- Temperature range: 5℃ to 60℃
- Weight: 520g ±5% (empty), 920g ±5% (filled)
- Dimensions: 98mm(H) × 86mm(W) × 132mm(L)
- Viscosity range: ISO VG32–VG68 (22–68 cSt at 40℃)
- Air consumption: ≤0.1 NL/min (during adjustment)
- Protection rating: IP54 (dust/water resistant)
Precision lubricator featuring anti-clogging ceramic metering valve and dual-chamber design for continuous oil supply. Includes magnetic float for oil level monitoring and pressure compensation mechanism for stable output under fluctuating air pressures. Compatible with most mineral-based pneumatic tool oils.
- Pneumatic cylinder maintenance in assembly lines
- Air tool lubrication systems
- Packaging machinery chain drives
- Textile machine pneumatic controls
- Automotive paint shop air preparation units
Installation protocol:
Mount vertically downstream of FRL units. Fill oil to 80% capacity maximum.
Adjust drip rate after 5 minutes of system pressurization. Replace cup annually
if using synthetic oils to prevent material degradation.
| Property | Property Value |
|---|---|
| sku | GAL40010 |
| Port Size | PT3/8 |
