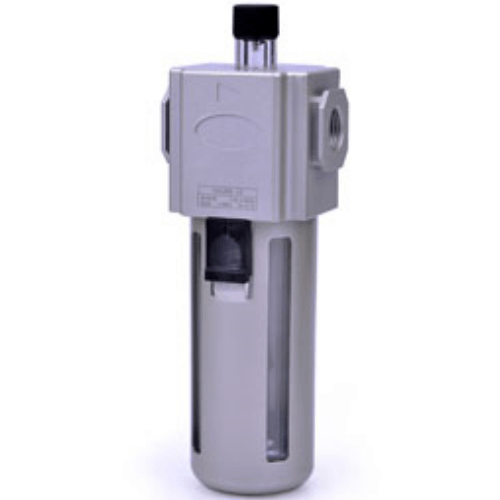

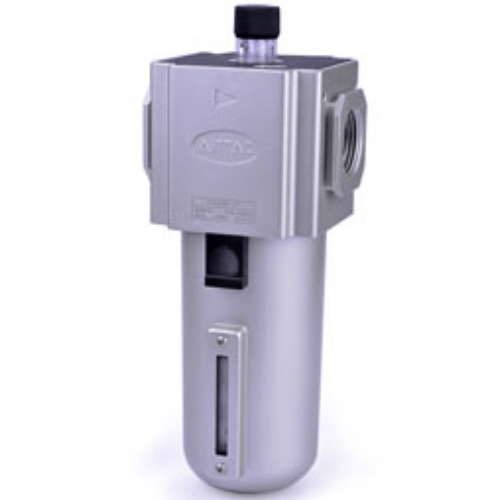

Airtac GAL Lubricator GAL40015J
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL40015J Lubricator (GAL Series) Specifications
- Model: GAL40015J
- Type: Micro-fog adjustable lubricator with oil level indicator
- Capacity: 400 ml
- Oil output adjustment: 0-15 drops/min (needle valve control)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.05-1.0 MPa
- Maximum air flow: 500 L/min
- Material:
- Oil bowl: Impact-resistant transparent PC
- Main body: POM + Stainless steel internals
- Temperature range: -10℃ to 60℃
- Mounting type: Panel mount with 55mm bracket spacing
- Weight: 450g ±5% (empty)
- Dimensions: 120mm(H) × 80mm(W) × 150mm(D)
- Compatible oils: ISO VG32 or equivalent turbine oils
- Drip window material: Borosilicate glass
Professional-grade pneumatic lubricator featuring triple-stage filtration (40μm primary + 25μm secondary mesh + 5μm final sintered filter). Equipped with a vacuum-break anti-drip mechanism and dual-color oil level indicator (green=normal, red=refill). The rotating bowl design allows 360° viewing angle without disassembly.
- Centralized lubrication systems for CNC machining centers
- Pneumatic cylinder maintenance in automotive assembly lines
- High-cycle packaging machinery requiring continuous oil mist supply
- Textile manufacturing air preparation units
- Railway braking system air lines
Installation protocol:
Install downstream of filters/regulators in FRL (Filter-Regulator-Lubricator) units.
Maintain vertical orientation (±5° tolerance). Pre-fill bowl to 80% capacity before
initial operation. Adjust oil flow only under pressurized conditions.
Compatibility note:
Do not use with ester-based or water-soluble lubricants. Replace bowl immediately
if scratched or exposed to UV degradation. Annual diaphragm replacement recommended.
| Property | Property Value |
|---|---|
| sku | GAL40015J |
| Port Size | PT 1/2 |
