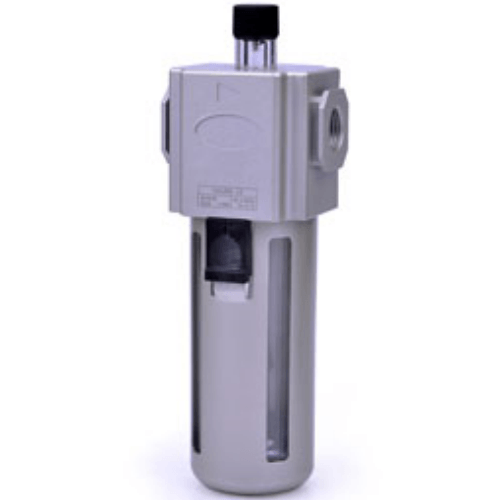

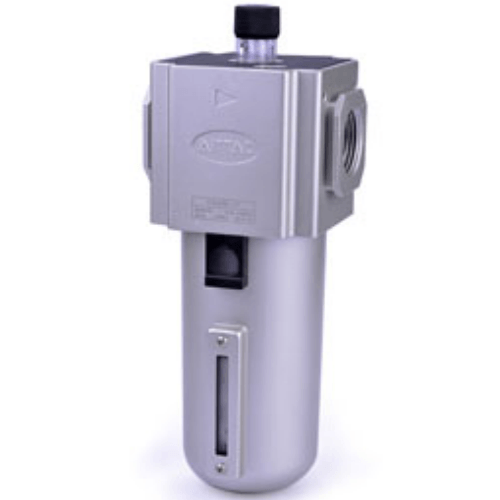

Airtac GAL Lubricator GAL400C10
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL400C10 Automatic Lubricator (Oil Feeder) Specifications
- Model: GAL400C10
- Type: Pneumatic system automatic oil feeder with adjustable drip rate
- Capacity: 400cc (13.5 oz)
- Oil output per cycle: 0.01-0.25 ml (micro-adjustable via precision knob)
- Operating pressure range: 0.15-1.0 MPa (21.7-145 PSI)
- Connection port: Rc1/4 (BSPP 1/4")
- Body material: Transparent polycarbonate reservoir + aluminum alloy base
- Oil viscosity range: ISO VG32-220 (32-220 cSt at 40℃)
- Temperature range: 0℃ to 60℃ (operating fluid temperature)
- Weight: 680g (with empty reservoir)
- Dimensions: 108mm(H) × 75mm(W) × 75mm(D)
- Safety features: Anti-drip valve, pressure-resistant sight glass
The GAL400C10 precision lubricator delivers controlled oil mist to pneumatic systems through venturi principle operation. Features a magnified scale window (50ml graduation marks) and corrosion-resistant anodized aluminum components. Requires ISO Class 4/3/2 oil per ISO 8573-1 standards. Includes built-in check valve to prevent air backflow.
- Pneumatic cylinder lubrication in assembly line machinery
- Air tool maintenance in automotive repair shops
- Rotary actuator systems in packaging equipment
- Textile manufacturing air circuit lubrication
- Plastic injection molding machine pneumatic controls
Installation protocol:
Mount vertically within 5 meters downstream of air preparation units.
Fill reservoir to 80% capacity max. Perform initial adjustment by turning
control knob clockwise until oil appears in sight glass, then back off
1/4 turn. Recommended maintenance: Clean filter screen every 500 operating hours.
| Property | Property Value |
|---|---|
| sku | GAL400C10 |
| Port Size | PT3/8 |
