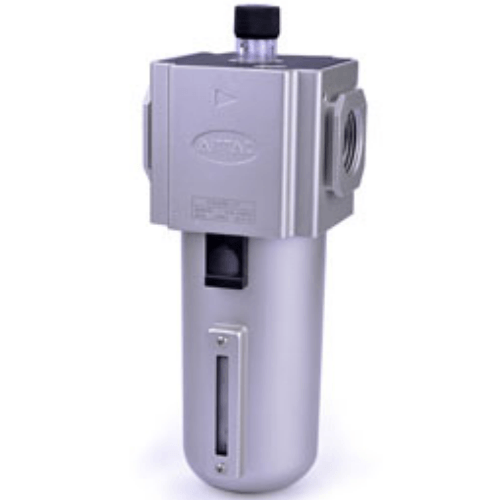

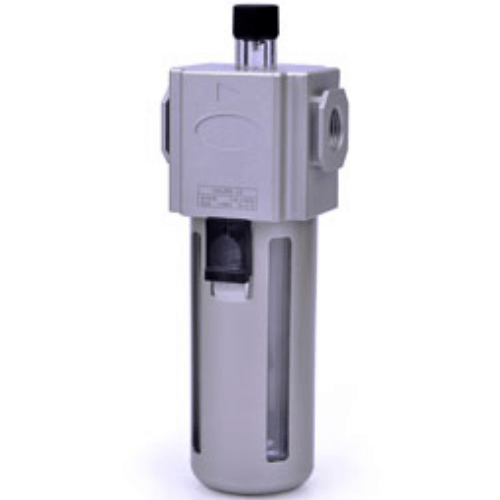

Airtac GAL Lubricator GAL400C10J
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL400C10J Lubricator Technical Specifications
- Model: GAL400C10J (GAL Series)
- Type: Micro-fog adjustable lubricator with visual oil level
- Port size: PT1/2 (R1/2)
- Operating pressure: 0.2–1.0 MPa
- Maximum flow capacity: 600 NL/min
- Oil capacity: 400 ml
- Oil droplet adjustment: 5-60 drops/min (0.1-1.2 cm³/min)
- Body material: Polycarbonate (PC) with anti-UV treatment
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 60℃ (operating), -20℃ to 70℃ (storage)
- Weight: ~1.2 kg (empty), ~1.6 kg (filled)
- Dimensions: 180mm(H) × 100mm(W) × 100mm(D)
- Viscosity range: ISO VG32–VG68 (recommended)
- Orientation: Vertical installation required (±5° tolerance)
High-capacity industrial lubricator featuring a transparent oil reservoir with magnified scale markings for precise monitoring. Equipped with a corrosion-resistant brass adjustment knob and integrated check valve to prevent oil backflow. The unique cyclone oil-mist separation design ensures stable lubrication even under pulsating airflow conditions.
- Pneumatic production lines requiring continuous lubrication
- Automated assembly machinery with multiple actuators
- Food processing equipment (when using NSF H1-grade oil)
- Textile machinery lubrication systems
- Railway braking system maintenance
Maintenance protocol:
Refill when oil level drops below 20% capacity. Adjust droplet frequency
while observing actual airflow (1 drop/10 cycles recommended for cylinders).
Use only filtered ISO VG32-68 turbine oil. Replace bowl annually or after
5,000 operating hours.
| Property | Property Value |
|---|---|
| sku | GAL400C10J |
| Port Size | PT3/8 |
