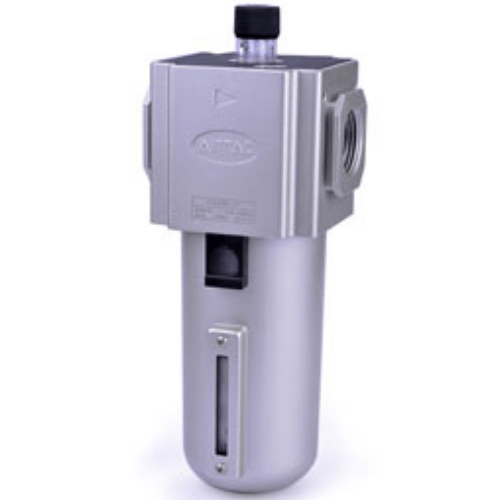

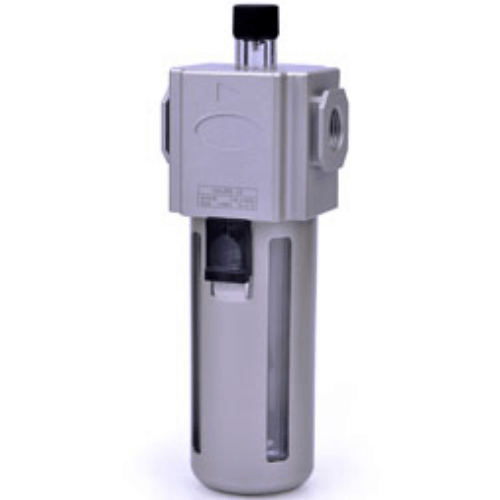

Airtac GAL Lubricator GAL400C15
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL400C15 Lubricator (Oil Feeder) Specifications
- Model: GAL400C15
- Type: Adjustable micro-drip oil feeder with transparent bowl
- Capacity: 400cc
- Operating pressure range: 0.05-1.0 MPa
- Oil flow adjustment: 0-15 drops/min (calibrated knob)
- Inlet/Outlet size: PT1/2 (BSPP thread)
- Drain port: PT1/8
- Recommended oil viscosity: ISO VG32 or equivalent (turbine oil)
- Temperature range: 5℃ to 60℃ (operating fluid)
- Weight: 0.52kg (empty), 0.92kg (filled)
- Dimensions: 98mm(H) × 75mm(W) × 75mm(D)
- Body material: Die-cast aluminum (anodized finish)
- Bowl material: Polycarbonate (impact-resistant)
High-visibility lubricator designed for centralized pneumatic system maintenance, featuring a dual-chamber design that allows oil replenishment without system depressurization. The precision needle valve enables real-time flow monitoring through its graduated sight glass. Includes anti-backflow check valve and magnetic float for low-oil level warning.
- Pneumatic cylinder lubrication systems
- Air tool maintenance stations
- Packaging machinery air lines
- Industrial automation actuator networks
- CNC machine pneumatic circuits
Installation protocol:
Mount vertically within 10 meters downstream of air preparation units.
Prime with oil before initial use - fill until bowl is 80% full.
Adjust drip rate under pressure: 1 drop/5-10 standard cubic meters airflow.
- Bowl replacement: Every 2 years or 8,000 operating hours
- Filter element: Clean monthly with ultrasonic bath (max 40℃)
- Seal replacement: Use only NBR O-rings (P/N: GAL-SEAL400)
| Property | Property Value |
|---|---|
| sku | GAL400C15 |
| Port Size | PT 1/2 |
