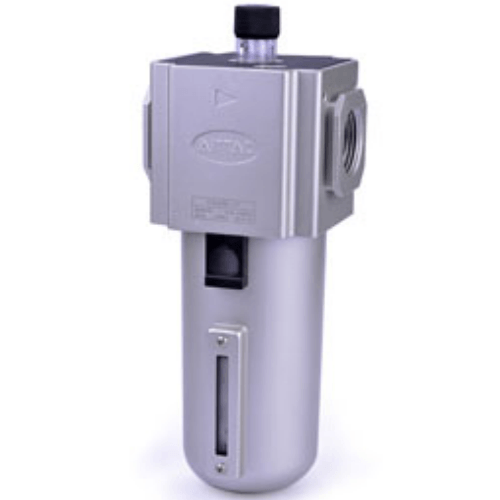

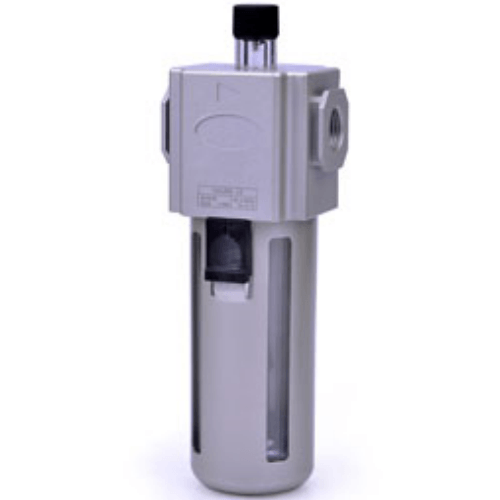

Airtac GAL Lubricator GAL500N20
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL500N20 Automatic Lubricator Specifications
- Model: GAL500N20
- Type: Pneumatic system oil feeder with adjustable drip rate
- Capacity: 500ml (transparent polycarbonate reservoir)
- Operating pressure range: 0.2-1.0 MPa (29-145 PSI)
- Oil output adjustment: 1-60 drops/min (≈0.03-1.8 ml/min)
- Inlet/Outlet ports: Rc1/4 (BSPP thread)
- Compatible oils: ISO VG32 or lighter (AWG32, turbine oil)
- Temperature range: -5℃ to 60℃ (operating fluid temp)
- Body material: Anodized aluminum alloy
- Weight: 820g ±3% (empty reservoir)
- Dimensions: 150mm(H) × 80mm(W) × 80mm(D)
- Visual indicator: Dual-color window (green=normal, red=refill)
- Seal material: NBR/Viton optional
- Mounting: Bracket slot for M5 screws
Precision oil metering device with anti-clog needle valve, designed for continuous lubrication of pneumatic components (cylinders, valves). Features bubble-free oil delivery through sintered bronze filter and corrosion-resistant construction. Includes built-in check valve to prevent air backflow.
- CNC machine pneumatic tool changers
- Automated assembly line actuators
- Food packaging machinery (FDA-grade oil compatible)
- Printing press air cylinder maintenance
- Railway braking systems
Installation protocol:
Mount vertically within 500mm downstream of FRL units. Prime unit by rotating adjustment knob fully clockwise before initial operation. Replace oil annually or every 400 operational hours.
| Property | Property Value |
|---|---|
| sku | GAL500N20 |
| Port Size | BSPT 3/4 |
