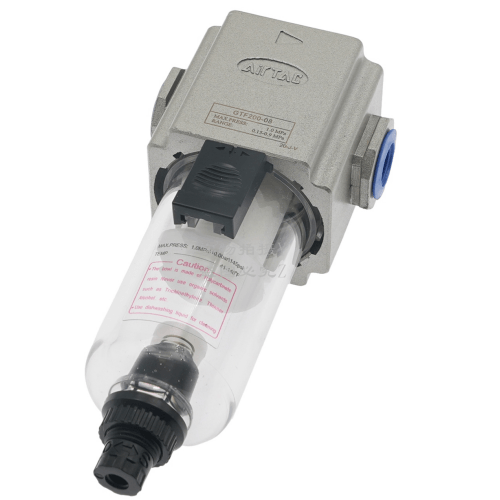

Airtac GTF Filter GTF20006J
2. Both water and oil bowls utilize space-efficient short-type PC construction, enabling compact installations in space-restricted applications;
3. Equipped with differential pressure manual drainage mechanism for optimized fluid management.
Category: Filters | Brand: AirTAC | Series: GTF
AirTAC GTF Series Filter GTF20006J Technical Details
- Model: GTF20006J
- Type: Auto-drain compressed air filter
- Filtration rating: 5 μm (microns)
- Flow capacity: 3,000 L/min (at 0.7 MPa)
- Operating pressure: 0.15–1.0 MPa
- Maximum pressure: 1.5 MPa
- Port size: PT3/8 (BSPP thread)
- Body material: Aluminum alloy (anodized)
- Bowl material: Polycarbonate (impact-resistant)
- Temperature range: -20℃ to 60℃
- Weight: 450g (dry, without bracket)
- Dimensions: 80mm(W) × 60mm(D) × 120mm(H)
- Drain type: Semi-automatic float drain
- Pressure loss: ≤0.02 MPa (at rated flow)
- Filter element: Hydrophobic glass fiber
- O-ring material: Nitrile rubber (NBR)
High-efficiency coalescing filter with visual contamination indicator, designed for industrial compressed air systems. Features dual-stage filtration: first-stage centrifugal separation removes bulk liquids, second-stage glass fiber media captures fine particulates and aerosols. The transparent bowl allows easy monitoring of contamination levels, with a red pop-up indicator signaling when element replacement is required (typically at 0.1 MPa differential pressure).
- Pneumatic tool air preparation systems
- CNC machine air supply lines
- Paint spray booth compressed air conditioning
- Food processing pneumatic controls
- Pharmaceutical manufacturing air lines
- Robotic actuator protection systems
Maintenance protocol:
Drain bowl should be manually purged daily in high-humidity environments.
Replace filter element every 2,000 operating hours or when pressure drop exceeds 0.07 MPa.
Install vertically with arrow mark pointing downward in airflow direction.
| Property | Property Value |
|---|---|
| sku | GTF20006J |
| Port Size | PT1/8 |
