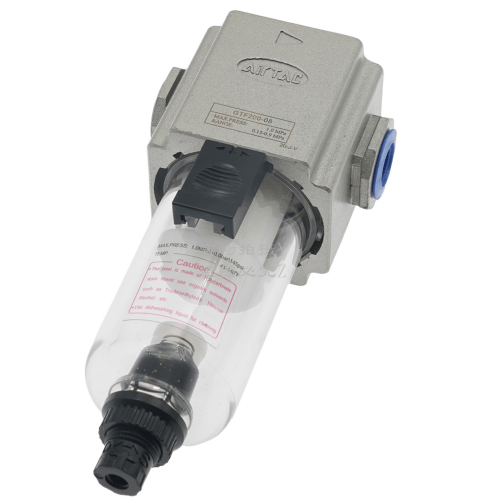

Airtac GTF Filter GTF20006JW
2. Both water and oil bowls utilize space-efficient short-type PC construction, enabling compact installations in space-restricted applications;
3. Equipped with differential pressure manual drainage mechanism for optimized fluid management.
Category: Filters | Brand: AirTAC | Series: GTF
AirTAC GTF Filter GTF20006JW Technical Details
- Model: GTF20006JW
- Type: Auto-drain compressed air filter with pressure regulator integration
- Filtration grade: 5 μm (ISO 8573-1:2010 compliant)
- Flow capacity: 1,500 NL/min (at 0.7 MPa)
- Port size: PT1/2 (BSPP thread)
- Operating pressure: 0.15–1.0 MPa
- Maximum pressure: 1.5 MPa
- Weight: 850g ±2% (dry, without accessories)
- Dimensions: 140mm(H) × 80mm(W) × 80mm(D)
- Bowl material: Polycarbonate (PC) with impact-resistant coating
- Element material: Sintered bronze (replaceable)
- Temperature range: -10℃ to 60℃ (non-freezing conditions)
- Drain type: Semi-automatic float drain
- Pressure gauge: Built-in 1/8" NPT gauge port
- Pressure loss: ≤0.02 MPa at rated flow
High-efficiency coalescing filter designed for industrial pneumatic systems requiring ISO Class 3 air quality. Features a transparent bowl with anti-static treatment to prevent particle adhesion, and a dual-stage filtration system combining centrifugal separation and depth filtration. The 360° rotatable bracket allows flexible installation orientations.
- CNC machine tool pneumatic circuits
- Automated painting systems
- Food packaging machinery (FDA-compliant versions available)
- Laser cutting machine air preparation units
- Semiconductor manufacturing clean air supply
Maintenance protocol:
Replace filter element every 4,000 operating hours or when differential pressure exceeds 0.07 MPa.
Always depressurize system before bowl removal. Compatible with AirTAC AFD series automatic drains
for upgrade to full-auto drainage.
| Property | Property Value |
|---|---|
| sku | GTF20006JW |
| Port Size | PT1/8 |
