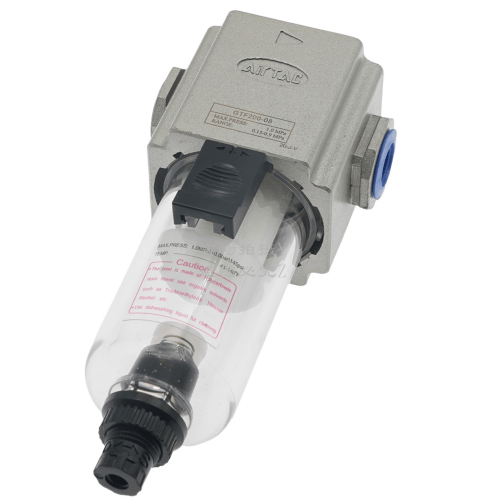

Airtac GTF Filter GTF20008J
2. Both water and oil bowls utilize space-efficient short-type PC construction, enabling compact installations in space-restricted applications;
3. Equipped with differential pressure manual drainage mechanism for optimized fluid management.
Category: Filters | Brand: AirTAC | Series: GTF
AirTAC GTF Series Filter GTF20008J Technical Details
- Model: GTF20008J
- Type: Auto-drainage filter with 5μm filtration
- Port size: PT1/2 (G1/2 optional)
- Operating pressure: 0.15–1.0 MPa
- Max flow rate: 2,500 L/min (ANR)
- Filtration grade: 5μm (multi-layer sintered stainless steel)
- Pressure drop: ≤0.02 MPa at rated flow
- Drain type: Semi-automatic float drain
- Temperature range: -20℃ to 70℃ (non-freezing)
- Weight: 350g ±5% (dry)
- Dimensions: Ø60mm × 125mm(H) (excluding ports)
- Body material: Anodized aluminum alloy
- Filter bowl: Transparent polycarbonate (impact-resistant)
- Seal material: Oil-resistant NBR
- Installation orientation: Vertical (±15° tolerance)
High-efficiency coalescing filter designed for industrial compressed air pretreatment. Features a visible sediment bowl with one-touch drain button and splash guard. The multi-stage filtration system removes water aerosols, pipe scale, and particulate contaminants while maintaining minimal pressure loss.
- Pneumatic tool air inlet protection
- CNC machine lubrication systems
- Food packaging air preparation units
- Semiconductor manufacturing dry air supply
- Dental chair pneumatic circuits
Maintenance protocol:
Replace filter element every 6,000 operational hours or when pressure drop exceeds 0.05 MPa.
Bowl cleaning required weekly in high-humidity environments. Never use petroleum-based cleaners on polycarbonate components.
| Property | Property Value |
|---|---|
| sku | GTF20008J |
| Port Size | PT1/4 |
