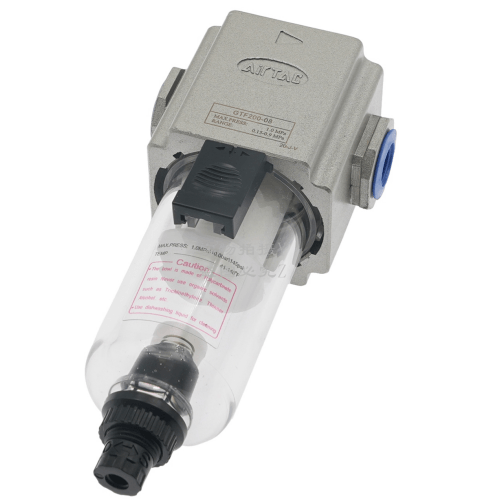

Airtac GTF Filter GTF20008JW
2. Both water and oil bowls utilize space-efficient short-type PC construction, enabling compact installations in space-restricted applications;
3. Equipped with differential pressure manual drainage mechanism for optimized fluid management.
Category: Filters | Brand: AirTAC | Series: GTF
AirTAC GTF20008JW Filter Unit Technical Details
- Model: GTF20008JW
- Type: Auto-drain compressed air filter with wall-mount bracket
- Filtration grade: 5 μm (microns)
- Maximum flow rate: 1,500 L/min (ANR)
- Operating pressure range: 0.15-1.0 MPa
- Port size: PT3/8 (BSPP thread)
- Filter element material: Sintered bronze with hydrophobic coating
- Drain type: Semi-automatic float drain
- Temperature range: -10℃ to 60℃ (non-freezing conditions)
- Weight: 0.8 kg (with bracket)
- Dimensions: 100mm(H) × 60mm(W) × 60mm(D)
- Bowl capacity: 70 mL
- Pressure loss: ≤0.02 MPa at rated flow
- Housing material: Aluminum alloy (anodized)
High-efficiency coalescing filter featuring dual-stage filtration with mechanical separation and depth filtration. The integrated vortex generator enhances water separation efficiency while the corrosion-resistant bowl allows visual contamination monitoring. Designed for compressed air pre-filtration in ISO 8573-1 Class 3 air quality systems.
- Upstream of pneumatic valves/cylinders in CNC machinery
- Compressed air pretreatment for painting systems
- Laboratory air supply purification
- Packaging machine air line protection
- Food processing pneumatic controls
Maintenance protocol:
Replace filter element every 3,000 operating hours or when pressure drop exceeds 0.05 MPa.
Drain bowl daily in high-humidity environments. Use only original AirTAC replacement elements (P/N: GTF-EL05).
| Property | Property Value |
|---|---|
| sku | GTF20008JW |
| Port Size | PT1/4 |
