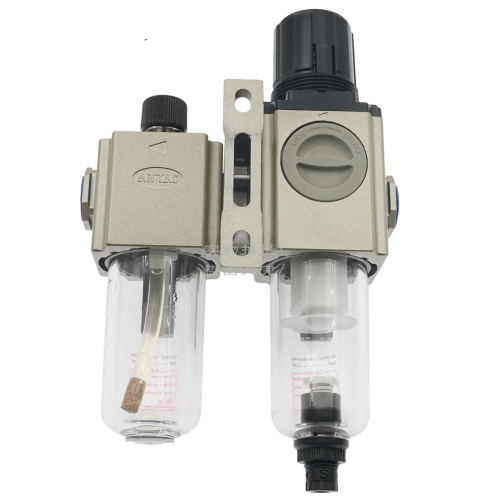

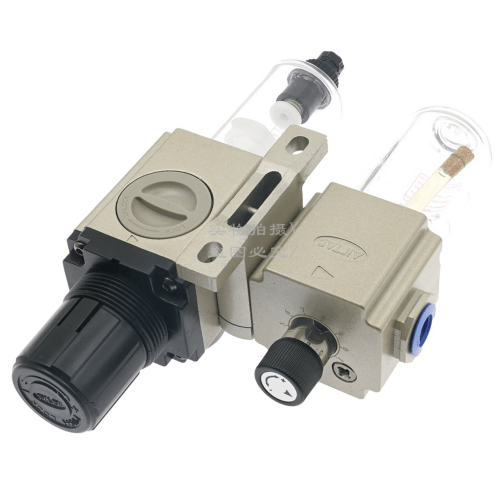

Airtac GTFC Air Filter Regulator Combination GTFC20006LNW
2. Equipped with compact short-type PC bowls for both water and oil reservoirs, delivering minimized installation footprint ideal for space-constrained applications;
3. Integrated differential pressure manual drainage mechanism for filter bowl water discharge.
Category: Air Treatment Combination Units | Brand: AIRTAC | Series: GTFC
AirTAC GTFC20006LNW Filter Regulator Lubricator (FRL) Unit Specifications
- Model: GTFC20006LNW
- Type: Triple combination unit (Filter + Regulator + Lubricator)
- Port size: PT1/2 (G1/2 optional)
- Operating pressure: 0.15–1.0 MPa
- Filtration rating: 5 μm (40 μm optional element available)
- Pressure gauge: 1/8" BSP dial type (0-1.6 MPa range)
- Adjustment knob: Lockable rotary control with ±2% accuracy
- Flow capacity: 3,500 Nl/min (ANR)
- Body material: Aluminum alloy (filter bowl: polycarbonate)
- Temperature range: -5℃ to 60℃ (non-freezing)
- Weight: 1.8 kg (dry)
- Dimensions: 200mm(H) × 150mm(W) × 85mm(D)
- Lubricator oil capacity: 180 cm³
- Drain type: Manual or semi-automatic (optional)
- Mounting: Bracket slot for 25mm DIN rail
Industrial-grade FRL unit combining 3-stage air preparation with corrosion-resistant construction. Features a transparent bowl with anti-static coating, pressure maintaining valve, and drip-feed lubricator with adjustable oiler (2-5 drops/min). The integrated bypass design minimizes pressure drop while maintaining 99.8% water separation efficiency.
- Pneumatic production line main air supply
- CNC machine tool pneumatic systems
- Automated assembly equipment
- Industrial robot end-effector control
- Plastic injection molding machines
- Packaging machinery air circuits
Maintenance protocol:
Replace filter element every 2,000 operational hours or when pressure drop exceeds 0.1 MPa.
Lubricator requires ISO VG32 turbine oil. Always install vertically with arrow mark facing upward.
- Install upstream of directional control valves
- Maintain 10x pipe diameter straight inlet
- Use 2x 6mm mounting screws (max torque 2.5 N·m)
- Pre-charge lubricator before initial operation
| Property | Property Value |
|---|---|
| sku | GTFC20006LNW |
| Port Size | PT1/8 |
