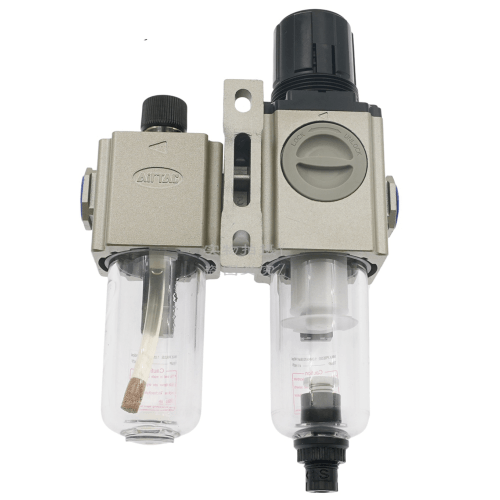

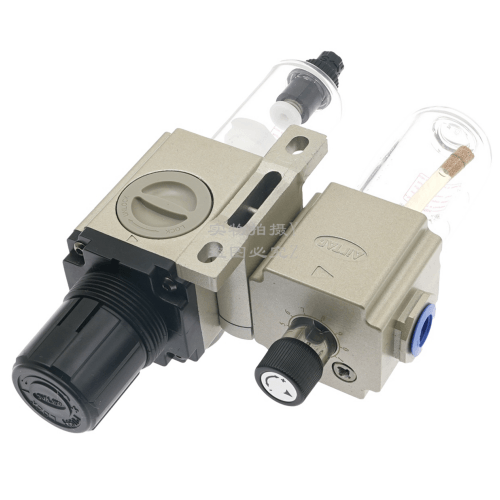

Airtac GTFC Air Filter Regulator Combination GTFC20008SNW
2. Equipped with compact short-type PC bowls for both water and oil reservoirs, delivering minimized installation footprint ideal for space-constrained applications;
3. Integrated differential pressure manual drainage mechanism for filter bowl water discharge.
Category: Air Treatment Combination Units | Brand: AIRTAC | Series: GTFC
AirTAC GTFC20008SNW Air Treatment Combination Unit Specifications
- Model: GTFC20008SNW
- Type: Filter-Regulator-Lubricator (FRL) Combination Unit
- Port size: PT1/2 (BSPP thread)
- Operating pressure range: 0.05–1.0 MPa
- Filtration grade: 40μm (replaceable sintered filter element)
- Pressure regulation range: 0.05–0.85 MPa
- Maximum flow rate: 3,500 L/min (ANR)
- Lubricator oil capacity: 180 cm³ (with drip-feed adjustment)
- Temperature range: 5℃ to 60℃ (non-freezing)
- Body material: Die-cast aluminum (anodized surface)
- Weight: 2.8 kg ±5%
- Dimensions: 225mm(H) × 150mm(W) × 95mm(D)
- Optional accessories: Pressure gauge guard, wall-mount bracket
Modular air preparation unit combining high-efficiency particulate filtration, precision pressure regulation, and adjustable lubrication functions. Features a corrosion-resistant bowl with safety shield, ergonomic pressure adjustment knob with lock mechanism, and transparent oil reservoir with anti-backflow design. Meets ISO 8573-1 air quality standards for general industrial applications.
- Pneumatic production line main air supply
- CNC machine tool pneumatic systems
- Automated assembly equipment
- Industrial robot end-effector control
- Packaging machinery air circuits
Maintenance protocol:
Drain condensate daily via bottom bowl release. Replace filter element every 2,000 operational hours.
Use ISO VG32 turbine oil in lubricator. Avoid mounting in vibration-prone areas.
- Installation sequence: Filter → Regulator → Lubricator (FRL)
- Mounting orientation: Vertical ±15° deviation allowed
- Upstream recommendation: Install manual shut-off valve for maintenance
| Property | Property Value |
|---|---|
| sku | GTFC20008SNW |
| Port Size | PT1/4 |
