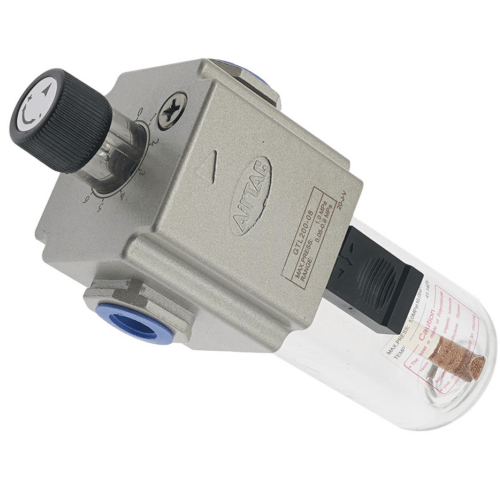

Airtac GTL Lubricator GTL20006
2. Features short-profile PC bowls for both water and oil chambers, optimizing installation space for confined environments;
3. Implements differential-pressure manual drainage mechanism across all filtration units.
Category: Lubricator | Brand: AirTAC | Series: GTL
AirTAC GTL Series Oil Mist Lubricator GTL20006 Technical Details
- Model: GTL20006 (Standard transparent bowl type)
- Type: Micro-fog adjustable lubricator
- Port size: PT1/4 (BSPP thread)
- Operating pressure range: 0.05-1.0 MPa
- Oil cup capacity: 200 cm³
- Filtration grade: 40-60 μm mesh filter
- Maximum air flow: 1,000 L/min (ANR)
- Body material: Anodized aluminum alloy
- Bowl material: Polycarbonate (impact-resistant)
- Seal material: Nitrile rubber (NBR)
- Operating temperature: -5℃ to 60℃ (23℉ to 140℉)
- Weight: 480g ±2% (with empty oil reservoir)
- Dimensions: 118mm(H) × 75mm(W) × 75mm(D)
- Viscosity range: ISO VG32-220 turbine oil
- Drip rate adjustment: 0-120 drops/min
- Protection rating: IP40 (non-submersible)
- Mounting orientation: Vertical installation required (±15° tolerance)
Professional-grade pneumatic lubricator featuring visible oil level monitoring and precision needle valve control. The corrosion-resistant construction with dual-chamber design ensures stable oil supply during pressure fluctuations. Includes built-in check valve to prevent reverse flow. Requires upstream filtration (5μm recommended).
- Pneumatic cylinder lubrication systems
- Automated assembly line actuators
- Packaging machinery air tool maintenance
- Industrial robotic end-effector controls
- CNC machine pneumatic circuits
Maintenance tip:
Refill when oil level drops below 1/3 capacity. Use only recommended
non-detergent oils. Rotate adjustment knob fully closed before
depressurizing system to prevent oil backflow.
| Property | Property Value |
|---|---|
| sku | GTL20006 |
| Port Size | PT1/8 |
