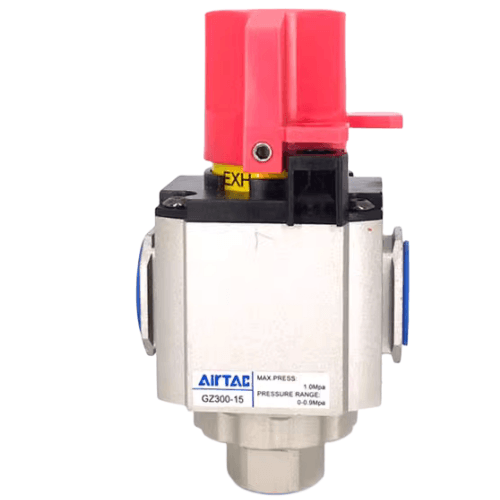

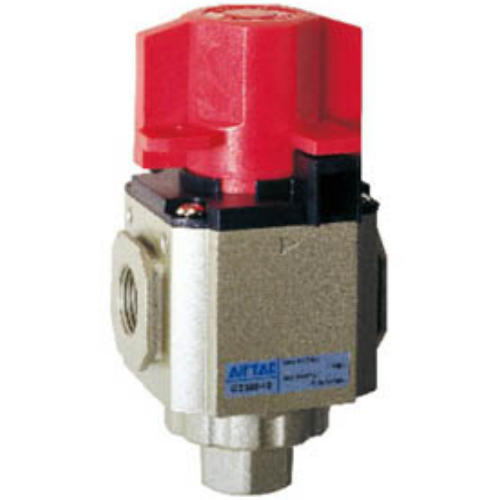

Airtac GZ Globe Valve GZ200-06
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;

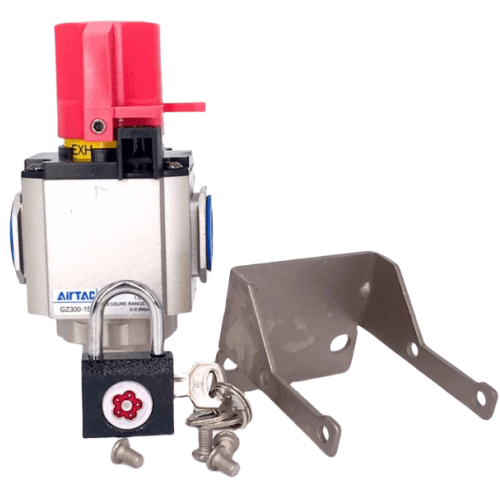

4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ200-06 Technical Specifications
- Model: GZ200-06
- Type: 2-position 2-way manual reset shut-off valve
- Port configuration: 1/4" BSPP (G1/4)
- Operating pressure range: 0.05–1.0 MPa
- Maximum flow rate: 1,200 NL/min
- Actuation force: ≤30N (manual lever operation)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Temperature resistance: -30℃ to +120℃ (with intermittent peaks at 150℃)
- Weight: 320g ±5g (excluding accessories)
- Dimensions: 80mm(L) × 40mm(W) × 65mm(H)
- Port-to-port length: 54mm
- Mounting options: Panel mount with M5x0.8 threaded holes (4x)
- Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
Robust emergency shut-off valve featuring dual-stage sealing technology and ergonomic lever design. The GZ200-06 incorporates a visual position indicator and failsafe mechanical lock mechanism. Optimized for high-cycle applications with its hardened stainless steel pivot mechanism and wear-compensation spring system.
- Compressed air emergency stop systems
- Pneumatic press safety interlocks
- Process gas line isolation in semiconductor manufacturing
- Hydraulic system maintenance lockout procedures
- Mobile machinery fuel line cutoff
Installation guidelines:
Install with flow direction arrow aligned to system requirements.
Perform monthly lever stroke tests under pressure. Lubricate pivot points
with ISO VG32 hydraulic oil every 5,000 cycles. Requires 20mm front clearance
for lever operation.
| Property | Property Value |
|---|---|
| sku | GZ200-06 |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT1/4 |
| Port | 1/8" |
| Bracket Code | With Bracket |
