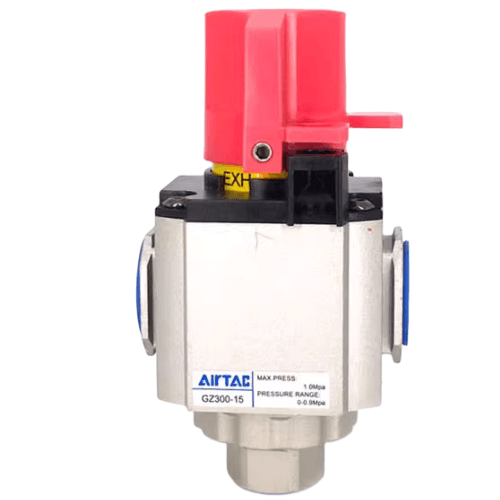

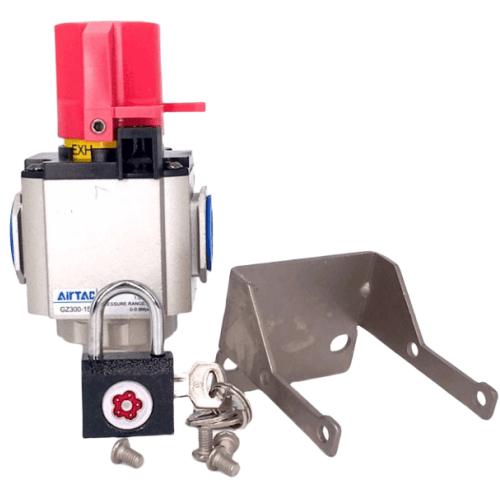

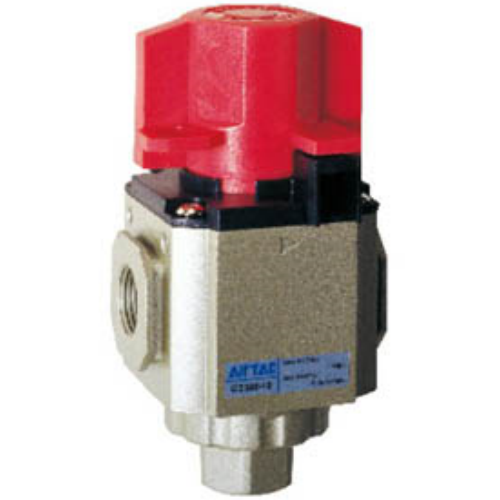

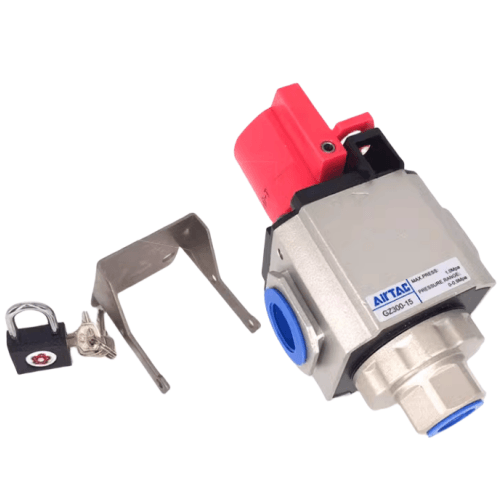

Airtac GZ Globe Valve GZ30008J
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;
4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ30008J Technical Details
- Model: GZ30008J (Threaded End)
- Valve type: 2-position 2-way manual shut-off valve
- Port configuration: 1/4" BSPP female threads (ISO 228-1)
- Pressure rating: 0.05-1.0 MPa operating / 1.5 MPa proof pressure
- Flow capacity: 1,200 NL/min (ANR, at 0.5 MPa)
- Leakage rate: ≤3 bubbles/min (ISO 6953-3 test standard)
- Actuation torque: 0.3-0.5 N·m (handwheel operation)
- Body material: Aluminum alloy ADC12 with chromate coating
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE backup ring
- Temperature range: -20℃ to 120℃ (continuous operation)
- Weight: 328g ±5g (including packaging)
- Dimensions: 58mm(L) × 42mm(W) × 76mm(H) (port center to end)
- Surface treatment: Clear anodized body with laser-etched flow arrows
Heavy-duty isolation valve featuring quarter-turn shut-off action with visual position indicator. The dual-seal design incorporates a primary HNBR seal for tight shutoff and secondary PTFE wear ring for extended cycle life. Precision-machined brass stem with PTFE bushings ensures smooth operation even after prolonged storage.
- Maintenance lockout in pneumatic distribution lines
- Sectional isolation for compressed air diagnostics
- Safety shut-off for CNC machine tool pneumatics
- Process gas control in semiconductor manufacturing
- Modular piping system service points
Installation guidelines:
Apply 28-32 N·m torque during port connection. Lubricate stem annually with MIL-PRF-23827 grease.
For vertical mounting, orient handwheel clockwise for OPEN position. Maintain 50mm clearance for wrench access.
Not recommended for:
- Steam or aggressive chemical media
- Frequent cycling (>50 operations/day)
- Systems with pressure surge >1.2 MPa
| Property | Property Value |
|---|---|
| sku | GZ30008J |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT3/8 |
| Port | PT1/4 |
| Bracket Code | Without bracket |
