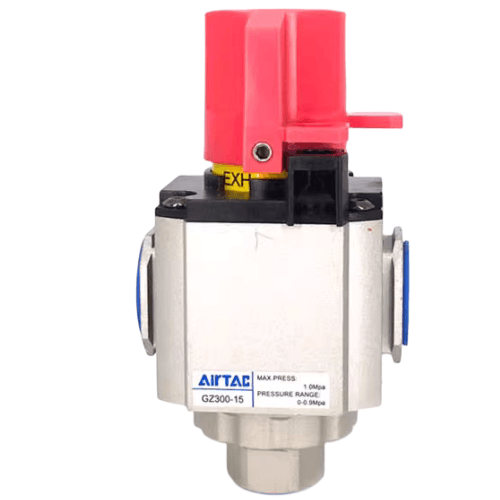

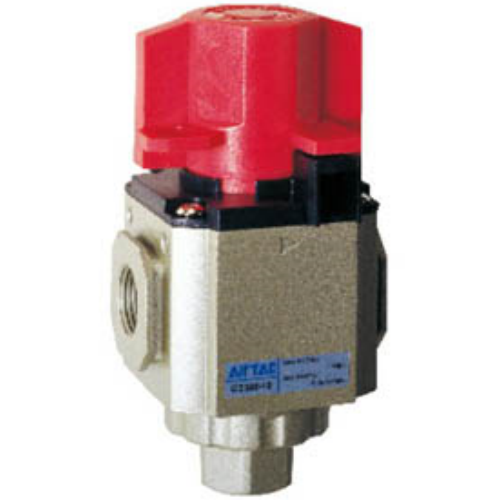

Airtac GZ Globe Valve GZ30015
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;

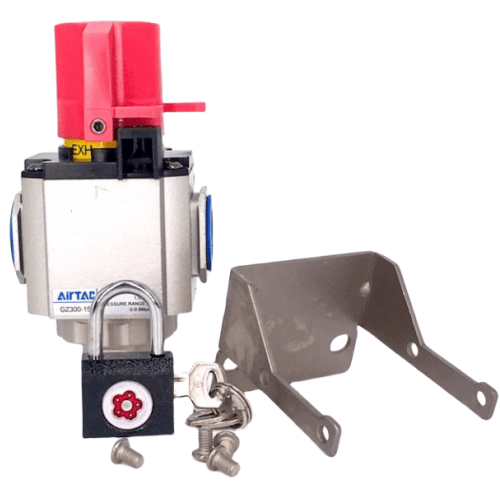

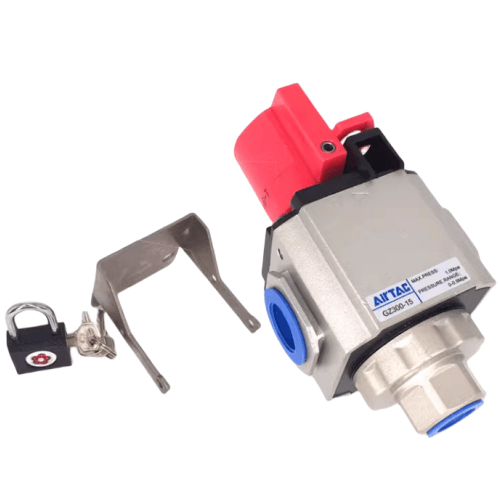

4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-off Valve GZ30015 Technical Details
- Model: GZ30015
- Type: 2-position 2-way manual shut-off valve
- Port configuration: 3/8" PT (BSPT) female threads
- Maximum working pressure: 1.0 MPa (145 psi)
- Pressure range: 0.2-1.0 MPa
- Operating temperature: -5℃ to 80℃
- Body material: Nickel-plated brass
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Flow coefficient (Cv): 0.8
- Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
- Actuation torque: 0.8-1.2 N·m
- Weight: 320g ±5%
- Dimensions: 65mm(L) × 30mm(W) × 40mm(H)
- Surface treatment: Chromate conversion coating
Heavy-duty manual shut-off valve featuring quarter-turn operation with positive position indicator. The chrome-plated brass construction ensures corrosion resistance in humid environments, while the HNBR/PTFE composite seals provide exceptional wear resistance over 500,000 cycles. Designed with full-port geometry to minimize pressure drop.
- Main air supply isolation in production lines
- Emergency shut-off for pneumatic presses
- Modular piping system maintenance points
- Compressed air distribution manifolds
- Instrumentation gas line control
Installation guidelines:
Apply pipe sealant only on male threads, avoid overtightening beyond 12 N·m torque.
Position handle for 45° upward movement accessibility. Perform monthly lubrication of
stem assembly using silicone-based grease (viscosity grade 50-70).
| Property | Property Value |
|---|---|
| sku | GZ30015 |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT3/8 |
| Port | PT 1/2 |
| Bracket Code | With Bracket |
