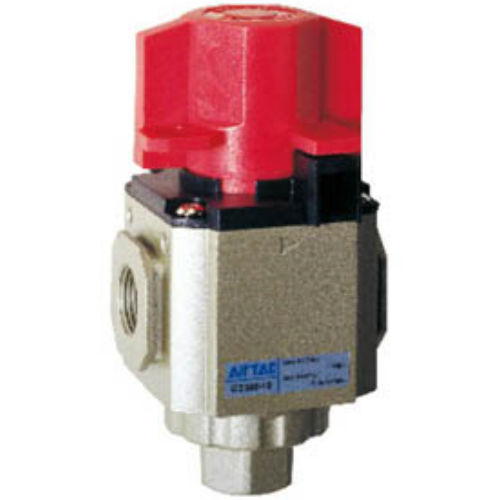

Airtac GZ Globe Valve GZ30015J
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;

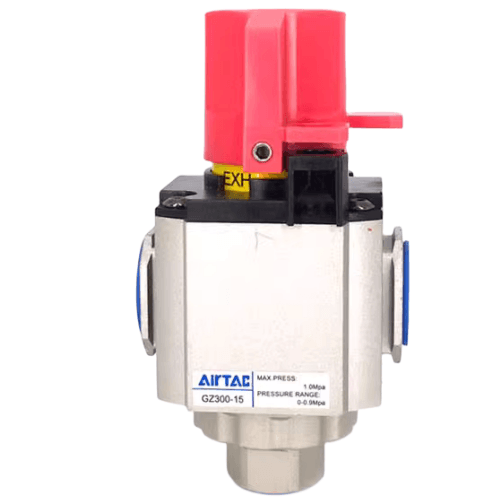

3. Visual confirmation of operational status through EXH./SUP. indicator markings;

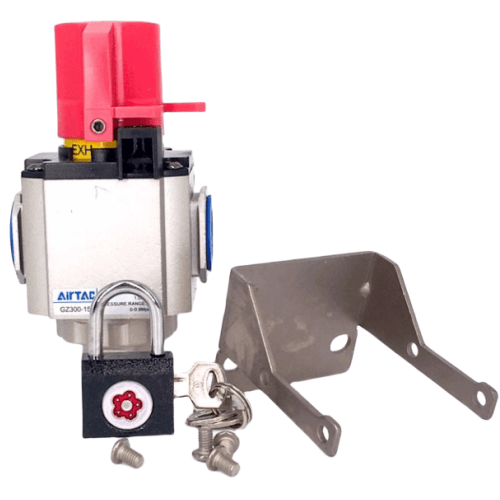

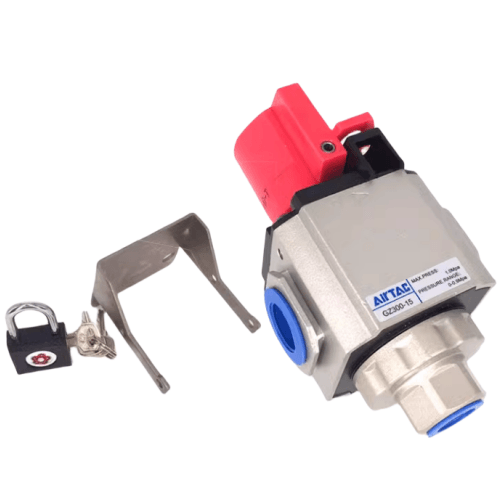

4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ30015J Technical Details
- Model: GZ30015J
- Type: 2-way manual shut-off valve (ball valve mechanism)
- Port size: PT1/2 (BSPP thread)
- Max working pressure: 1.0 MPa
- Pressure rating: 0.05-1.0 MPa operational range
- Flow coefficient (Cv): 3.2
- Valve body material: Lead-free brass CW617N
- Seal material: HNBR rubber (high nitrile)
- Handle type: Ergonomic T-bar lever with non-slip grip
- Temperature range: -20℃ to 150℃ (fluid dependent)
- Weight: 520g ±5g
- Dimensions: 65mm(L) × 50mm(W) × 80mm(H)
- Port orientation: Straight-through design
- Leakage rate: ≤0.1 mL/min @ 0.5 MPa
- Surface treatment: Electroplated nickel coating (5-8μm)
Industrial-grade manual shut-off valve featuring quarter-turn operation for rapid flow control. The chrome-plated ball with mirror finish ensures bubble-tight sealing and minimal torque requirement (≤1.5Nm). Features integrated thread protection caps and dual O-ring stem seal. Compatible with air, water, and non-corrosive fluids.
- Pneumatic system main line isolation
- Compressed air distribution manifolds
- Coolant line shut-off in CNC machinery
- Vacuum system maintenance ports
- Hydraulic test bench configuration
- Industrial water treatment bypass control
Installation guidelines:
Apply 12-15Nm torque during port connection. For vertical installation,
orient handle upward for ergonomic access. Perform full open/close
cycling 3-5 times after initial installation to seat seals properly.
| Property | Property Value |
|---|---|
| sku | GZ30015J |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT3/8 |
| Port | PT 1/2 |
| Bracket Code | Without bracket |
