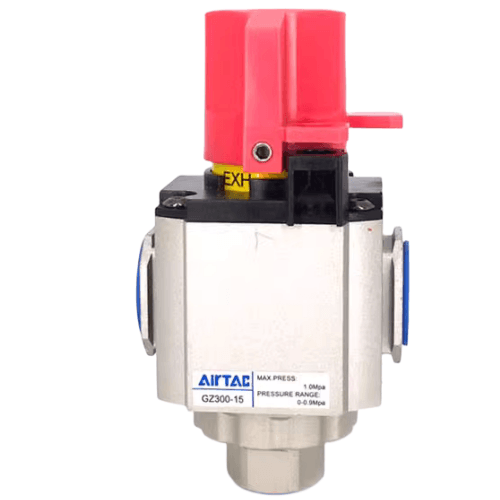

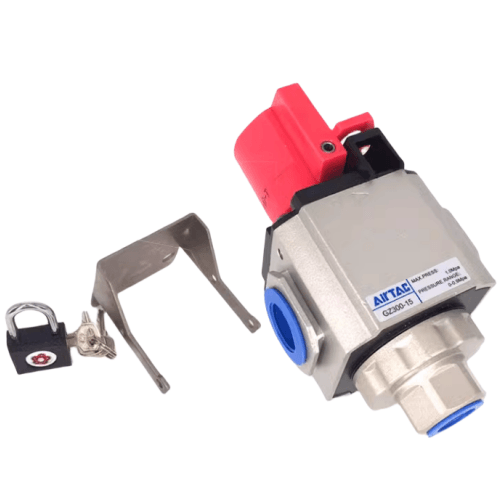

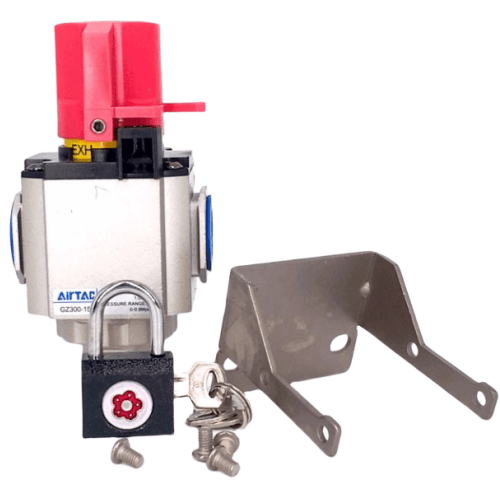

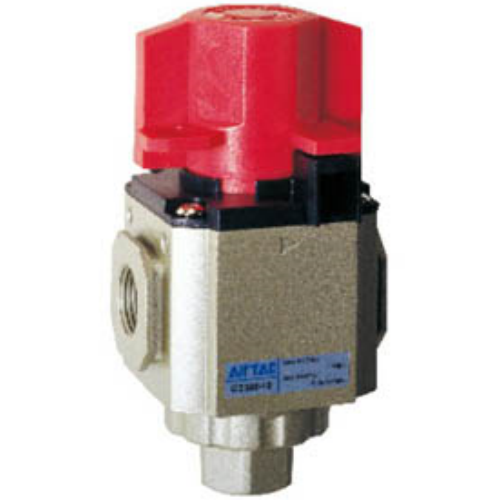

Airtac GZ Globe Valve GZ40010
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;
4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ40010 Technical Details
- Model: GZ40010
- Type: 2-position 2-way manual reset shut-off valve
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.1–0.8 MPa
- Maximum flow rate: 100 L/min (at 0.5 MPa)
- Actuation type: Lever-operated with mechanical lock
- Seal material: NBR/FKM (optional fluorocarbon)
- Temperature range: -20℃ to 80℃
- Body material: Anodized aluminum alloy
- Weight: 320g ±5g
- Dimensions: 60mm(L) × 30mm(W) × 50mm(H)
- Port thread depth: 12mm
- Leakage rate: ≤3 bubbles/min (JIS B8376 standard)
- Protection rating: IP67 (dust/water resistant)
Industrial-grade emergency shut-off valve featuring positive seal engagement and visual position indicator. The zinc-plated steel lever with ergonomic grip allows quick manual override. Designed for systems requiring immediate flow interruption capability with 180° rotation for full closure. Compatible with air, inert gases, and vacuum systems.
- Production line emergency stop circuits
- Compressed air main line safety isolation
- CNC machine tool pneumatic safety systems
- Semiconductor fab gas distribution panels
- Hydraulic system auxiliary pressure release
Maintenance protocol:
Lubricate pivot points annually with silicone grease (ISO VG 32).
Verify seal integrity every 50,000 cycles. Avoid side-loading during lever operation.
| Property | Property Value |
|---|---|
| sku | GZ40010 |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT 1/2 |
| Port | PT3/8 |
| Bracket Code | With Bracket |
