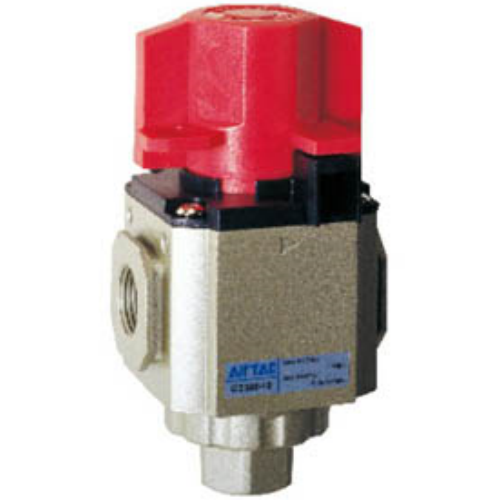

Airtac GZ Globe Valve GZ40010J
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;

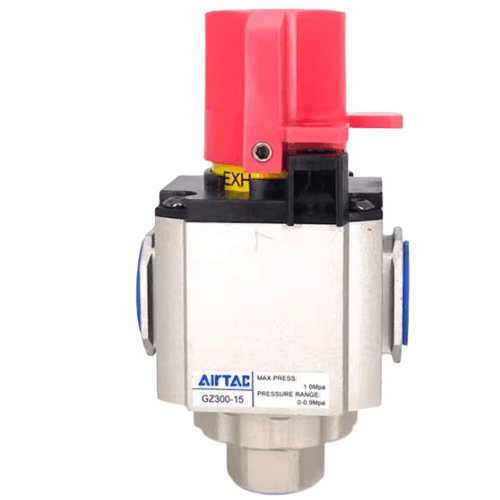

3. Visual confirmation of operational status through EXH./SUP. indicator markings;

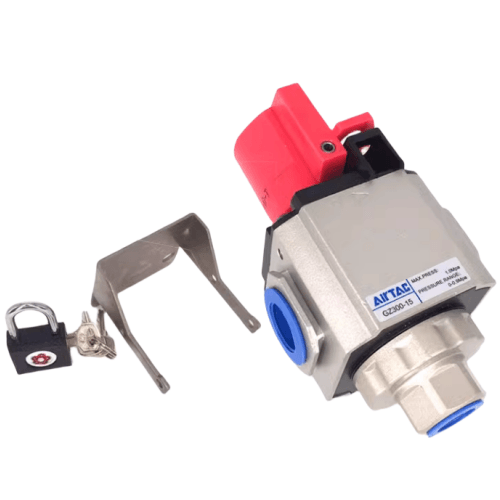

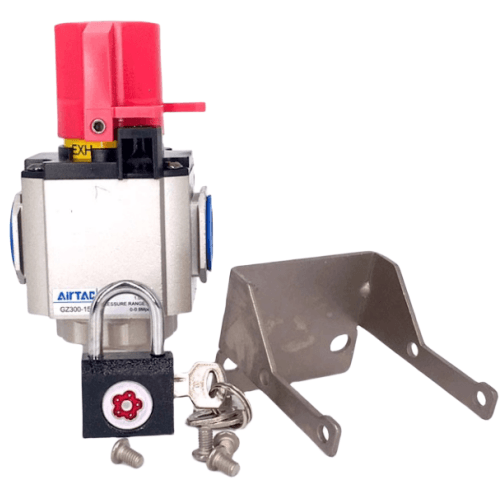

4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ40010J Technical Details
- Model: GZ40010J
- Type: 2-position 2-way manual shut-off valve
- Port configuration: 1/4" BSPP female threads (ISO 228 standard)
- Maximum working pressure: 1.0 MPa (145 psi)
- Proof pressure: 1.5 MPa
- Operating temperature: -5℃ to 80℃ (23°F to 176°F)
- Flow capacity: 800 NL/min (ANR)
- Seal material: HNBR (Hydrogenated Nitrile) for enhanced oil resistance
- Body material: Aluminum alloy with hard anodized finish
- Handle type: Lockable lever with 90° rotation
- Weight: 350g ±5% (0.77 lbs)
- Dimensions: 60mm(L) × 30mm(W) × 40mm(H) (2.36" × 1.18" × 1.57")
- Leakage rate: ≤0.1 NL/min under max pressure
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Robust manual isolation valve featuring positive shut-off action with visual position indication. The chrome-plated steel lever provides secure locking in open/closed positions, while the precision-machined poppet ensures bubble-tight sealing. Designed for permanent installation in pneumatic circuits requiring emergency flow interruption.
- Maintenance safety cutoff in production line manifolds
- Compressed air distribution systems
- Pneumatic tool supply circuits
- Energy isolation for CNC machine tool changers
- Modular fixture air supply control
Installation guidance:
Install with flow arrow aligned to system direction. For vertical piping,
orient lever horizontally for ergonomic operation. Apply 20-30Nm torque
during port connection using backup wrench on hex flats.
| Property | Property Value |
|---|---|
| sku | GZ40010J |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT 1/2 |
| Port | PT3/8 |
| Bracket Code | Without bracket |
