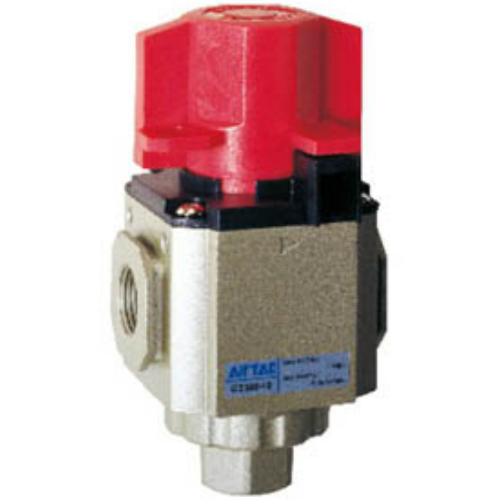

Airtac GZ Globe Valve GZ40015
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;

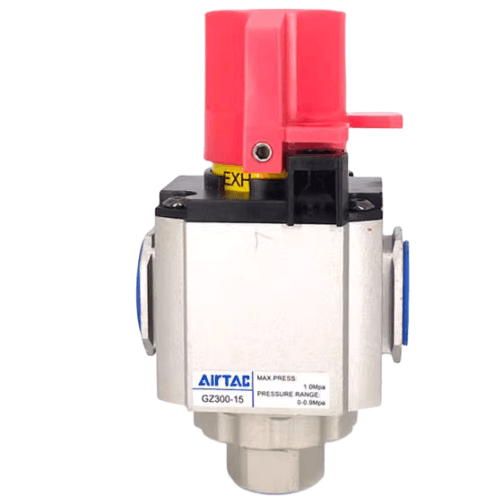

3. Visual confirmation of operational status through EXH./SUP. indicator markings;

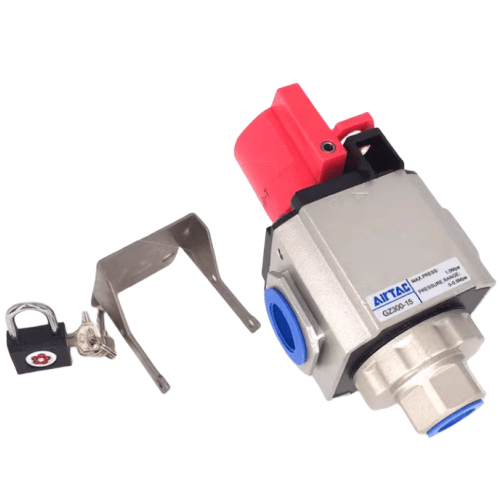

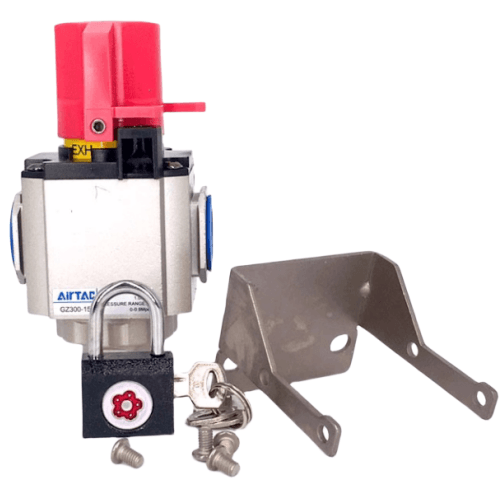

4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ40015 Technical Details
- Model: GZ40015
- Type: 2-position 2-way normally closed (direct-acting)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.1–0.8 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (±15%), AC220V (±15%)
- Flow coefficient (Cv): 1.2
- Seal material: HNBR rubber (high-grade nitrile)
- Temperature tolerance: -20℃ to 80℃ (non-freezing)
- Response time: ≤20ms (at rated voltage)
- Durability: ≥1,000,000 cycles
- Protection class: IP67 (dust/water resistant)
- Weight: 320g ±5g (including coil)
- Dimensions: 58mm(L) × 38mm(W) × 85mm(H)
- Port thread depth: 12mm (both inlet/outlet)
High-flow shut-off valve with zero-pressure start capability, featuring brass body construction with chrome-plated brass spool for corrosion resistance. The dual-seal structure prevents internal leakage even under pressure fluctuations. Requires ISO 8573-1 class 3 compressed air (max 5mg/m³ oil content).
- Emergency shut-off in CNC machine tool lubrication systems
- Compressed air line isolation in semiconductor cleanrooms
- Pneumatic safety circuits for injection molding machines
- Process control in food-grade CO₂ delivery systems
- Modular valve manifolds for automated assembly lines
Installation guidelines:
Mount in any orientation except inverted (coil downward).
Use 20-30 N·m torque for port connections.
Install downstream filter (5μm) when used with pneumatic actuators.
| Property | Property Value |
|---|---|
| sku | GZ40015 |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT 1/2 |
| Port | PT 1/2 |
| Bracket Code | With Bracket |
