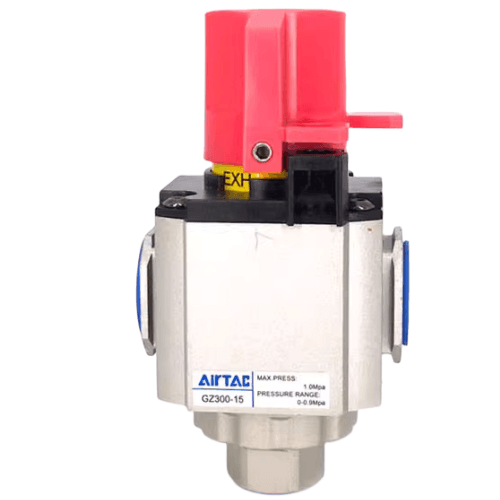

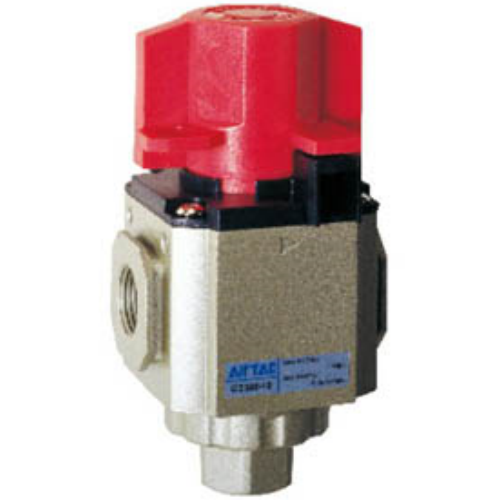

Airtac GZ Globe Valve GZ40015J
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;

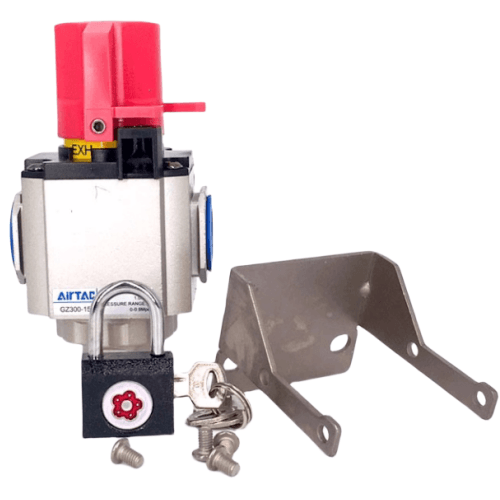

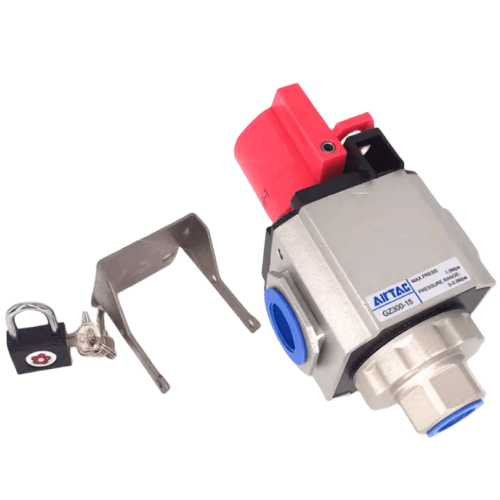

4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ40015J Technical Specifications
- Model: GZ40015J
- Type: Manual reset 2-port shut-off valve (direct acting)
- Port size: PT1/4 (BSPP thread)
- Operating pressure: 0.1–1.0 MPa
- Max flow capacity: 200 L/min (ANR)
- Body material: Aluminum alloy with hard anodized finish
- Seal material: HNBR rubber (-20℃ to 120℃)
- Weight: 280g ±5g
- Dimensions: 58mm(L) × 34mm(W) × 42mm(H)
- Pressure resistance: 1.5 MPa burst pressure
- Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
- Installation torque: 4.5–5.5 N·m
Heavy-duty emergency shut-off valve featuring zero-leakage poppet design with reinforced stem alignment. The chrome-plated brass stem and dual O-ring configuration ensure long-term sealing integrity under vibration conditions. Includes tamper-resistant locking lever with position indicator.
- Main line isolation in pneumatic conveyor systems
- Safety cutoff for CNC machine tool air supply
- Modular assembly station maintenance circuits
- Compressed air emergency shutdown in chemical plants
- Process interruption in food packaging lines
Installation protocol:
Mount in accessible locations with lever operation plane aligned to
operator position. Apply pipe sealant only on male threads,
avoiding contamination of internal flow paths. Perform monthly
cycle testing under pressure.
| Property | Property Value |
|---|---|
| sku | GZ40015J |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT 1/2 |
| Port | PT 1/2 |
| Bracket Code | Without bracket |
