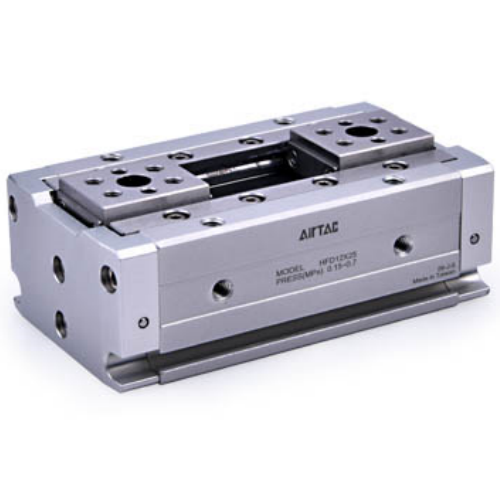

Airtac HFD Slim Type Pneumatic Gripper HFD12X10
$210.06
Regular price
$217.56
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFD12X10
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Dual-track design enhances load span for superior bending moment resistance.
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
Operational guidance:
For optimal performance, use filtered air (5-40μm) with lubricator (ISO VG32 oil).
Maintain 0.3-0.5MPa working pressure for precision tasks. Regular lubrication
intervals: 2 million cycles or 6 months. Avoid side-load exceeding 15N.
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD12X10 Slim Pneumatic Gripper Specifications
- Model: HFD12X10
- Type: Parallel jaw slim gripper (double-acting)
- Bore size: 12mm
- Stroke per jaw: 10mm
- Operating pressure: 0.1–0.7 MPa
- Max gripping force: 42N @ 0.5MPa
- Repeat accuracy: ±0.05mm
- Port size: M5x0.8 (dual ports for push/pull action)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃
- Weight: 180g ±5g
- Dimensions: 72mm(L) × 34mm(W) × 22mm(H)
- Mounting options: 4x M3 threaded holes (bottom) + 2x through holes (side)
- Max operating speed: 500mm/s
- Air consumption: 5.7cm³/stroke
Ultra-compact gripper with precision ground guide rods, designed for high-speed pick-and-place operations requiring minimal space. Features symmetrical air ports for balanced pressure distribution and anti-rotation jaw design. Compatible with ISO 6432 mounting standards.
Typical Applications:
- PCB component insertion machines
- Micro motor assembly lines
- Pharmaceutical blister packaging
- SCARA robot end-effectors
- Watch movement handling systems
- Semiconductor wafer transfer
Operational guidance:
For optimal performance, use filtered air (5-40μm) with lubricator (ISO VG32 oil).
Maintain 0.3-0.5MPa working pressure for precision tasks. Regular lubrication
intervals: 2 million cycles or 6 months. Avoid side-load exceeding 15N.
| Property | Property Value |
|---|---|
| sku | HFD12X10 |
| Stroke | <10mm> |
