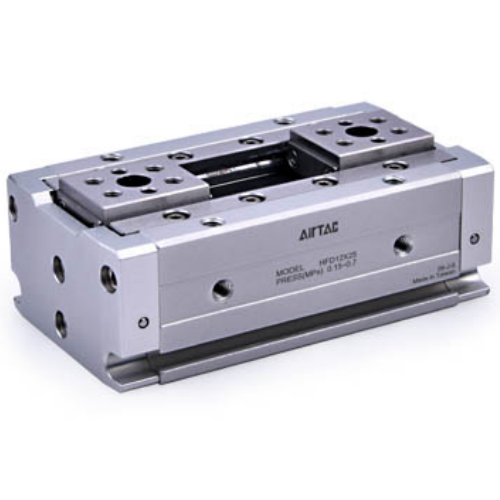

Airtac HFD Slim Type Pneumatic Gripper HFD12X50
2、Dual-piston mechanism delivers doubled output force, ensuring powerful clamping performance.
3、Integrated positioning pin holes on base plate improve installation accuracy and maintain positional consistency during repeated assembly/disassembly cycles.
4、Stainless steel guide rails provide exceptional rigidity and corrosion resistance for extended service life.
5、Four-directional mounting options offer flexible installation adaptability.
6、50% reduced overall height compared to parallel grippers with equivalent clamping capacity, optimizing space utilization and minimizing inertial sway moment.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFD
AirTAC HFD12X50 Slim Pneumatic Gripper Specifications
- Model: HFD12X50
- Type: Parallel movement compact gripper
- Bore size: Φ12mm
- Stroke per jaw: 50mm (total opening 100mm)
- Operating pressure: 0.1–0.7 MPa
- Max gripping force: 33N at 0.5MPa
- Repeat accuracy: ±0.01mm
- Port size: M5x0.8 (dual ports for parallel control)
- Weight: 0.45kg (aluminum body)
- Dimensions: 50mm(L) × 30mm(W) × 20mm(H)
- Seal material: Heat-resistant NBR (-10℃ to 120℃)
- Air consumption: 10.5cm³ per stroke
- Protection rating: IP54
- Mounting: 4x M3 threaded holes (depth 5mm)
Ultra-flat gripper (20mm height) with hardened guide rods and dual piston drive mechanism. Features anti-rotation design for stable parallel clamping, optimized for high-speed pick-and-place cycles up to 5Hz. Includes built-in air cushioning adjustment (via needle valves) to prevent workpiece slippage during rapid operation.
- PCB component insertion machines
- Micro-motor assembly lines
- Medical device handling (syringes, vial caps)
- SCARA robot end-effectors
- Watch movement precision manipulation
- Semiconductor wafer transfer systems
Operation tip:
For delicate objects, use 0.15-0.3MPa pressure with silicone pads.
Lubricate guide shafts monthly with ISO VG32 turbine oil. Avoid lateral
impact forces exceeding 50N during misalignment.
| Property | Property Value |
|---|---|
| sku | HFD12X50 |
| Stroke | <50mm> |
