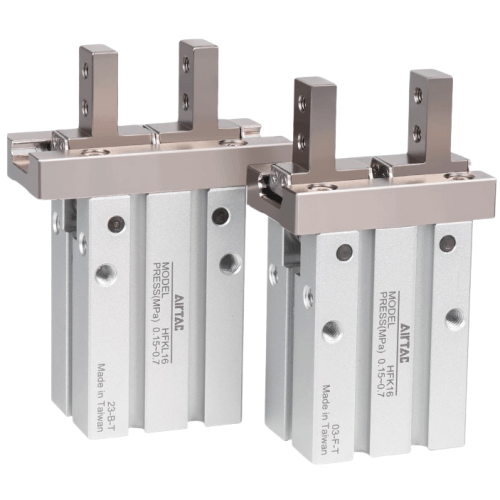

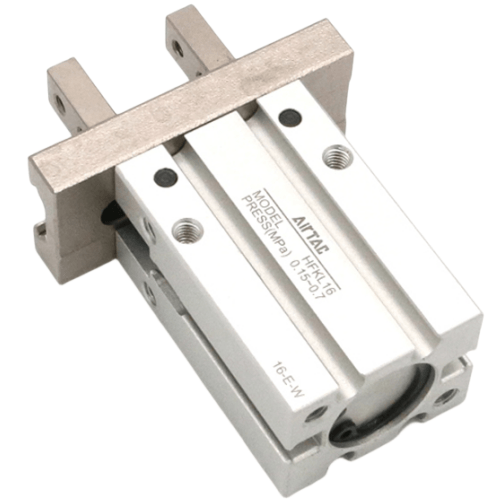

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL16N
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL16N Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL16N
- Type: Guided parallel gripper (double-acting)
- Gripping force: 25-80N adjustable (at 0.5MPa)
- Stroke per jaw: 0-6mm
- Operating pressure: 0.15-0.7 MPa
- Guide mechanism: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Material: Aluminum alloy body, CRCC steel guide rails
- Seals: NBR (standard), optional FKM for high temp
- Temperature range: -10℃ to 80℃ (NBR), -10℃ to 150℃ (FKM)
- Port size: M5x0.8 (standard), G1/8 adaptor optional
- Weight: 0.68kg ±2%
- Dimensions: 118mm(L) × 40mm(W) × 32mm(H)
- Mounting pattern: 30mm × 30mm with M4 threaded holes
- Protection rating: IP54 (standard), IP67 with optional wipers
- Max sliding speed: 300mm/s
Precision-guided parallel gripper with dual linear ball bearings for smooth, chatter-free operation. Features through-hole piston design for balanced force distribution and adjustable gripping force via pressure regulation. The hardened steel rails provide exceptional wear resistance for over 2 million cycles.
- PCB component insertion in SMT machines
- Precision part transfer in robotic arms (6-axis/SCARA)
- CNC machine tool loading/unloading systems
- Pharmaceutical blister packaging handling
- Optical lens positioning in camera assembly
Installation tips:
Align guide rails perpendicular to workpiece axis. Use grease nipple (M4×0.7) for periodic lubrication.
For delicate objects, install shock absorbers on both ends. Maintain 0.3-0.5MPa pressure for optimal grip force balance.
| Property | Property Value |
|---|---|
| sku | HFTKL16N |
| Gripper Optional Types | Through-hole mounting type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
| Stroke | 12mm |
