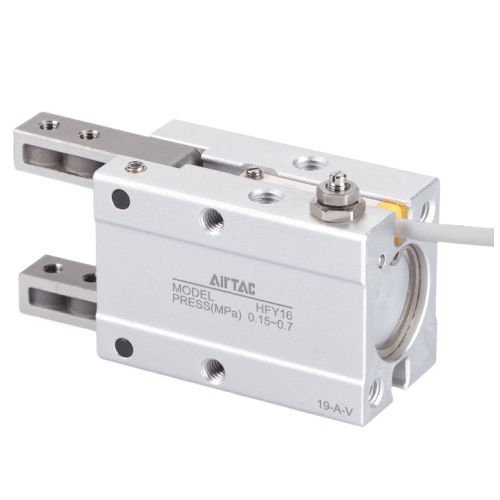

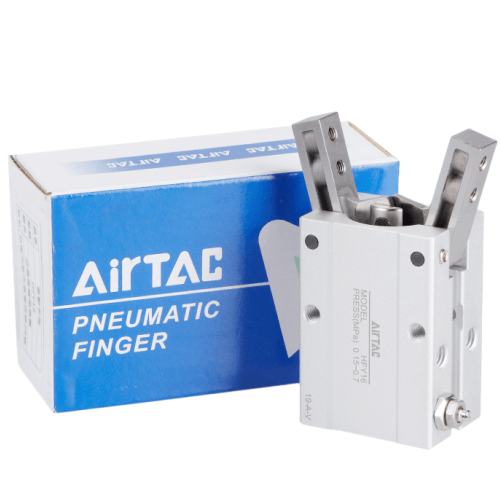

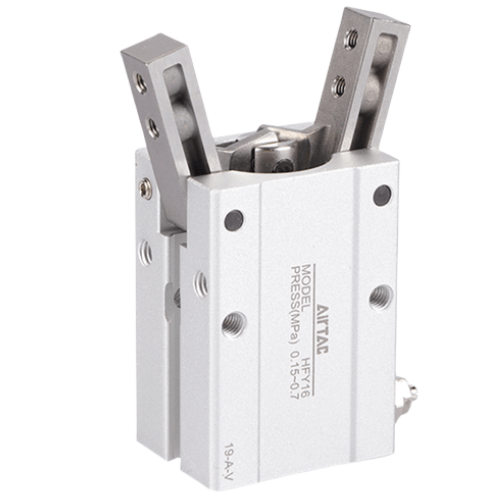

Airtac HFY Y-Type Pneumatic Gripper HFY10
2、Integrated adjustable throttle valve enables precise control of jaw opening/closing speed;
3、Optimized clamping angle design ensures wide application range across industrial scenarios;
4、High-precision positioning mechanism guarantees accurate and reliable workpiece gripping;
5、Multiple mounting configurations adapt to diverse installation requirements;
6、Standard integrated magnets across all models for enhanced proximity sensor compatibility.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFY
AirTAC HFY Series Y-Type Pneumatic Gripper HFY10 Technical Specifications
- Model: HFY10
- Type: Parallel gripper (Y-style dual piston structure)
- Bore size: Φ10mm
- Operating pressure: 0.1-0.7 MPa
- Max gripping force: 28N (at 0.5MPa)
- Stroke per jaw: 0-5mm (adjustable)
- Repeat accuracy: ±0.02mm
- Weight: 0.25kg (excluding accessories)
- Dimensions: 62mm(L) × 34mm(W) × 40mm(H)
- Mounting pattern: 20mm spacing M3 threaded holes
- Piston material: Hard anodized aluminum alloy
- Seal type: NBR + PU composite seals
- Temperature range: -10℃ to 80℃
- Air consumption: 3.5cm³/stroke (single acting)
- Response time: 0.1s (at 0.5MPa)
- Protection class: IP54 (standard)
Compact parallel jaw gripper featuring dual piston synchronization mechanism for precision centering. The hardened guide rails and adjustable stroke mechanism enable stable gripping of small components. Compatible with vacuum pads or custom jaw tooling through its M3 mounting interface. Requires 5μm filtered compressed air with ISO VG32 turbine oil mist lubrication (0.5-1.0g/m³).
- PCB component insertion machines
- Micro motor assembly lines
- Pharmaceutical blister packaging
- Watch movement handling systems
- 3C product testing equipment
- Precision gear positioning fixtures
Installation recommendation:
For vertical mounting applications, install a drip-proof cover (accessory HFY-AC3) to prevent
particulate ingress. Lubricate guide rails monthly with ISO VG68 grease in high-cycle
operations (>500,000 cycles/day).
| Property | Property Value |
|---|---|
| sku | HFY10 |
| Port Size | M3×0.5 |
| Maximum Gripping Length | 30mm |
| Cushion Type | Bumper Pad |
| Bore Diameter | <10mm> |
