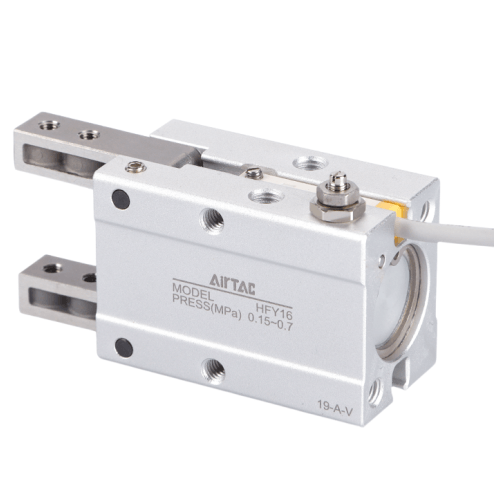

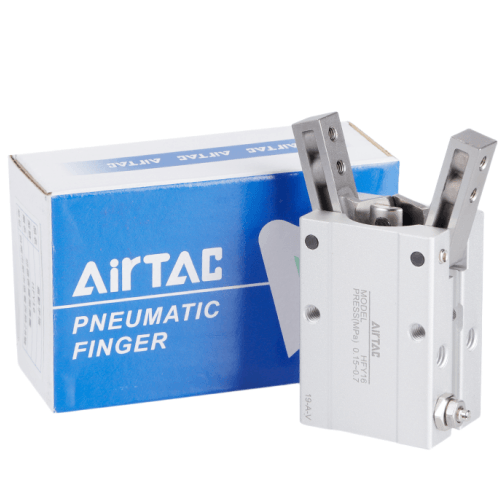

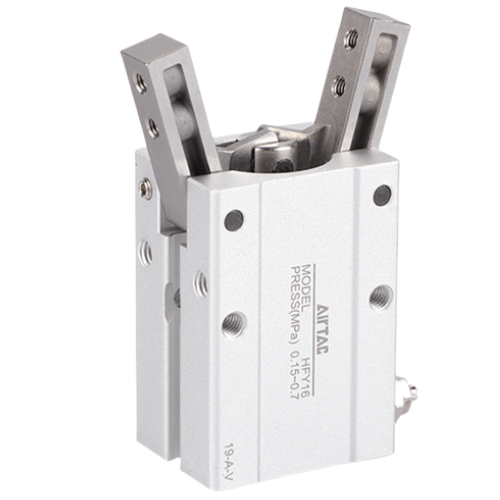

Airtac HFY Y-Type Pneumatic Gripper HFY16
2、Integrated adjustable throttle valve enables precise control of jaw opening/closing speed;
3、Optimized clamping angle design ensures wide application range across industrial scenarios;
4、High-precision positioning mechanism guarantees accurate and reliable workpiece gripping;
5、Multiple mounting configurations adapt to diverse installation requirements;
6、Standard integrated magnets across all models for enhanced proximity sensor compatibility.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFY
AirTAC HFY Series Y-Type Pneumatic Gripper HFY16 Technical Specifications
- Model: HFY16 (Y-type parallel movement)
- Bore size: Ø16mm
- Operating pressure: 0.1-0.7 MPa (14.5-101.5 PSI)
- Max stroke per jaw: 6mm (adjustable)
- Gripping force: 28N @0.4MPa | 49N @0.7MPa
- Repeat accuracy: ±0.02mm
- Response time: 0.1s (open/close cycle @0.5MPa)
- Air port size: M5x0.8 (dual ports for open/close control)
- Material: Anodized aluminum body, NBR seals
- Temperature range: -10℃ to 80℃ (14℉ to 176℉)
- Weight: 220g ±5% (bare unit without accessories)
- Dimensions: 70mm(L) × 34mm(W) × 25mm(H)
- Mounting pattern: 25mm spacing M3 threaded holes
- Air consumption: 5.6cm³/stroke
- IP rating: IP40 (dust protected)
Precision parallel-jaw gripper with dual piston drive mechanism, featuring zero backlash design for micro-part handling. Integrated T-slot allows modular tooling attachment. Compatible with vacuum cups/magnetic units for hybrid gripping solutions. Requires 5μm filtered dry air with ISO VG32 lubricator recommended.
- PCB component insertion machines
- Watch movement assembly automation
- Pharmaceutical blister packaging lines
- 3C product testing equipment
- Precision bearing sorting systems
Operation tip:
For delicate objects, use 0.15-0.3MPa pressure with silicone jaw pads.
Perform monthly lubrication via air line oiler (non-detergent oil only).
- Jaw types: Standard (steel), Soft (polyurethane), V-groove (ceramic)
- Mounting kits: HFY-MK3 cross bracket, HFY-EC16 edge clamp
- Sensors: MHW-M12 inductive proximity switch (sold separately)
| Property | Property Value |
|---|---|
| sku | HFY16 |
| Port Size | M5×0.8 |
| Maximum Gripping Length | <40mm> |
| Cushion Type | Bumper Pad |
| Bore Diameter | 16mm |
