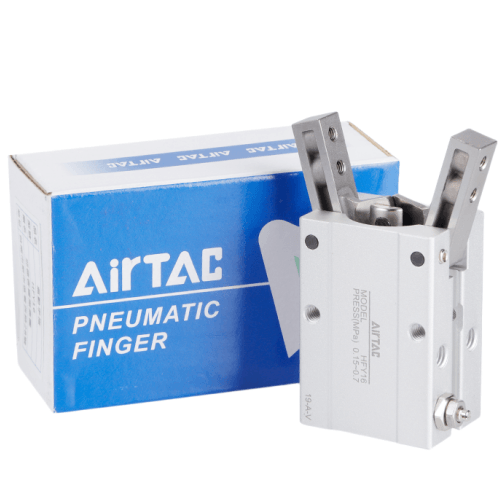

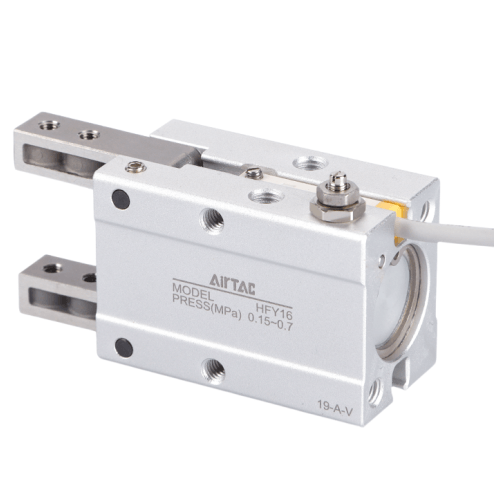

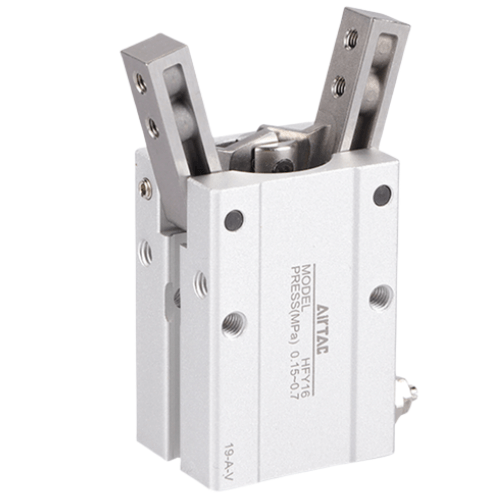

Airtac HFY Y-Type Pneumatic Gripper HFY20
2、Integrated adjustable throttle valve enables precise control of jaw opening/closing speed;
3、Optimized clamping angle design ensures wide application range across industrial scenarios;
4、High-precision positioning mechanism guarantees accurate and reliable workpiece gripping;
5、Multiple mounting configurations adapt to diverse installation requirements;
6、Standard integrated magnets across all models for enhanced proximity sensor compatibility.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFY
AirTAC HFY Y-Style Pneumatic Gripper HFY20 Technical Specifications
- Model: HFY20 (Y-type parallel gripper)
- Structure: Dual-piston symmetrical design
- Action type: Double acting (air required for both open/close)
- Gripping force: 18-22N (adjustable via pressure)
- Stroke options: 5mm/10mm/15mm (customizable)
- Operating pressure: 0.1-0.7 MPa
- Port size: M5 (1/8" NPT optional)
- Material: Aluminum alloy body, NBR seals
- Temperature range: -10℃ to 80℃
- Weight: 0.25kg ±5%
- Dimensions: 80mm(L) × 40mm(W) × 30mm(H)
- Repeat accuracy: ±0.02mm
- Max operating speed: 100mm/s
- Air consumption: 3.5cm³/stroke
- Surface treatment: Anodized finish
- Protection class: IP40
Precision-engineered parallel gripper with self-aligning guide mechanism, featuring wear-compensating design for consistent performance. The T-slot mounting pattern allows flexible integration with robotic arms or automation equipment. Optimized for high-cycle operations (up to 1.5 million cycles) with minimal maintenance.
- PCB component insertion machines
- Automated screw driving stations
- Medical device assembly lines
- Packaging system product transfer
- 3C industry precision handling
- Cartesian robot end effectors
Operational guidance:
Use filtered lubricated air (ISO 8573-1 class 3.4.2) with 1-3 drops of ISO VG32 oil per m³.
For vertical installations, install exhaust mist lubricator downstream. Maximum side load: 5N.
- Allow 0.5-1mm play in mounting for thermal expansion
- Use shock absorbers for cycles >0.5Hz
- Pair with AGP-04 series sensors for position feedback
- Recommended maintenance interval: 5 million cycles
| Property | Property Value |
|---|---|
| sku | HFY20 |
| Port Size | M5×0.8 |
| Maximum Gripping Length | 60mm |
| Cushion Type | Bumper Pad |
| Bore Diameter | <20mm> |
