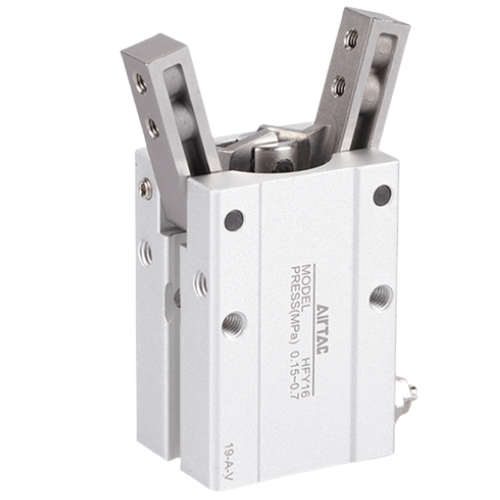

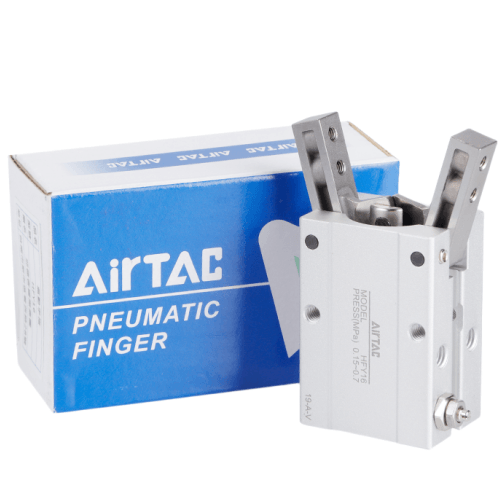

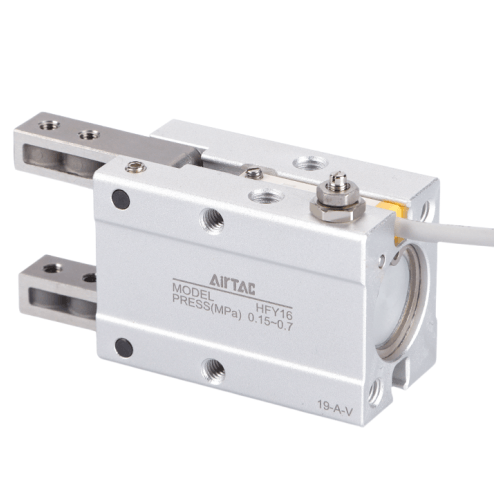

Airtac HFY Y-Type Pneumatic Gripper HFY25
$80.46
Regular price
$87.96
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFY25
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Features a single-piston structure delivering superior clamping torque;
2、Integrated adjustable throttle valve enables precise control of jaw opening/closing speed;
3、Optimized clamping angle design ensures wide application range across industrial scenarios;
4、High-precision positioning mechanism guarantees accurate and reliable workpiece gripping;
5、Multiple mounting configurations adapt to diverse installation requirements;
6、Standard integrated magnets across all models for enhanced proximity sensor compatibility.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFY
Operation note:
Requires 5-40μm filtered lubricated air (ISO 8573-1 class 4-4-3).
For vertical mounting applications, install a drip-proof cover (optional accessory HFC-25).
2、Integrated adjustable throttle valve enables precise control of jaw opening/closing speed;
3、Optimized clamping angle design ensures wide application range across industrial scenarios;
4、High-precision positioning mechanism guarantees accurate and reliable workpiece gripping;
5、Multiple mounting configurations adapt to diverse installation requirements;
6、Standard integrated magnets across all models for enhanced proximity sensor compatibility.
Category: Pneumatic Grippers , Brand: AirTAC , Series: HFY
AirTAC HFY Series Y-Type Pneumatic Gripper HFY25 Technical Specifications
- Model: HFY25
- Type: Y-shaped parallel gripper (double-acting)
- Gripping force: 25N (adjustable via pressure regulation)
- Operating pressure: 0.1-0.7 MPa
- Stroke per jaw: 5mm standard (customizable up to 15mm)
- Actuation: Dual pilot air control required
- Repeat accuracy: ±0.02mm
- Port size: M5x0.8 (dual ports for open/close control)
- Material: Anodized aluminum body, NBR seals
- Temperature range: -10℃ to 80℃ (with dry air)
- Weight: 280g ±5%
- Dimensions: 72mm(L) × 40mm(W) × 34mm(H)
- Mounting pattern: 25mm inter-hole spacing (M4 threaded)
- Cycle life: 10 million cycles (under rated conditions)
Precision parallel gripper with self-aligning jaw seats, featuring symmetrical force distribution and zero mechanical play. The hardened guide rods ensure smooth operation even under side load conditions. Compatible with ISO 9400-1 mounting standards.
Industrial Applications:
- PCB component insertion machines
- Automated syringe handling in pharma production
- Precision bearing assembly systems
- Carton flap folding in packaging lines
- Micro-motor rotor handling
Operation note:
Requires 5-40μm filtered lubricated air (ISO 8573-1 class 4-4-3).
For vertical mounting applications, install a drip-proof cover (optional accessory HFC-25).
Servicing:
Relubricate every 500,000 cycles using ISO VG32 turbine oil.
Avoid silicone-based lubricants which may degrade NBR seals.
| Property | Property Value |
|---|---|
| sku | HFY25 |
| Port Size | M5×0.8 |
| Maximum Gripping Length | 70mm |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
