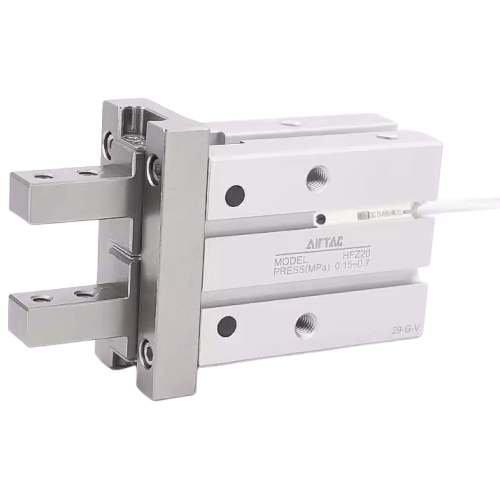

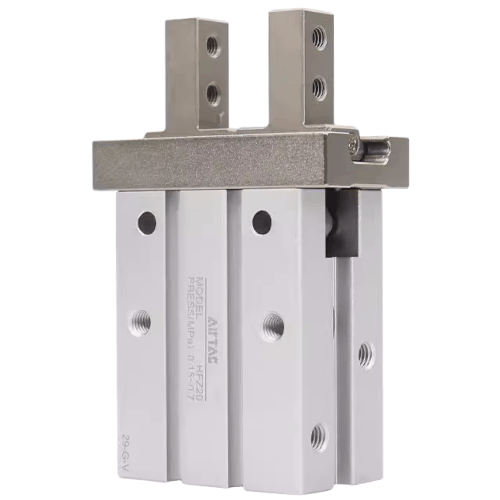

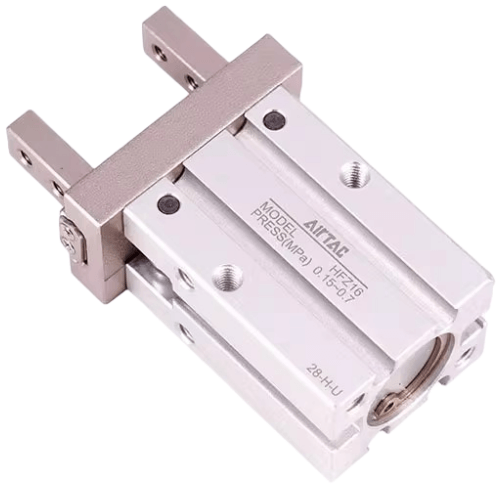

Airtac HFZ Parallel Type Pneumatic Gripper HFZ6
$123.26
Regular price
$130.76
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFZ6
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Features an integrated linear guide design for high rigidity and precision;
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
Installation guidelines:
Apply ISO VG32 hydraulic oil for initial lubrication. Avoid side-load forces exceeding 15N.
For vacuum environments, use optional Viton seals (HFZ6-V variant).
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
AirTAC HFZ6 Parallel Pneumatic Gripper Technical Specifications
- Model: HFZ6 (Parallel Type)
- Gripping force: 18N @ 0.5MPa / 28N @ 0.7MPa
- Stroke per jaw: 6mm (Standard), customizable 3-12mm
- Operating pressure: 0.1-0.7 MPa (14.5-101.5 PSI)
- Port size: M5x0.8 (Dual Rc1/8 optional)
- Material: Anodized aluminum body, NBR seals
- Guide mechanism: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Max speed: 100mm/s (with cushioning)
- Weight: 0.42kg (0.93 lbs)
- Dimensions: 96mm(L) × 40mm(W) × 34mm(H)
- Temperature range: -10℃ to 80℃ (14°F to 176°F)
- Shock resistance: 50m/s² (5G) for 3 axes
- Mounting pattern: 4x M4 threaded holes (8mm pitch)
High-precision parallel gripper with self-lubricating guides, designed for delicate part handling. Features dual piston chambers for balanced force distribution and optional magnetic sensor slots (M5 mounting). Compatible with ISO 9409-1 mounting interfaces.
Industrial Applications:
- PCB component insertion machines
- Medical device assembly lines
- Automotive fuel injector handling
- Watch movement precision manipulation
- Silicon wafer transfer systems
Installation guidelines:
Apply ISO VG32 hydraulic oil for initial lubrication. Avoid side-load forces exceeding 15N.
For vacuum environments, use optional Viton seals (HFZ6-V variant).
Cycle Life: 10 million cycles @ 0.5MPa (with monthly maintenance)
Air Consumption: 4.5cm³/stroke (double-acting operation)
Surface Finish: Hard anodized (25μm thickness, MIL-A-8625 compliant)
Air Consumption: 4.5cm³/stroke (double-acting operation)
Surface Finish: Hard anodized (25μm thickness, MIL-A-8625 compliant)
| Property | Property Value |
|---|---|
| sku | HFZ6 |
| Gripper Optional Types | Standard Type |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <6mm> |
| Stroke | <3mm> |
