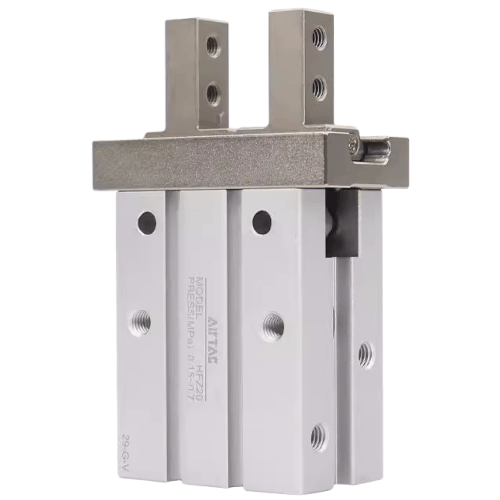

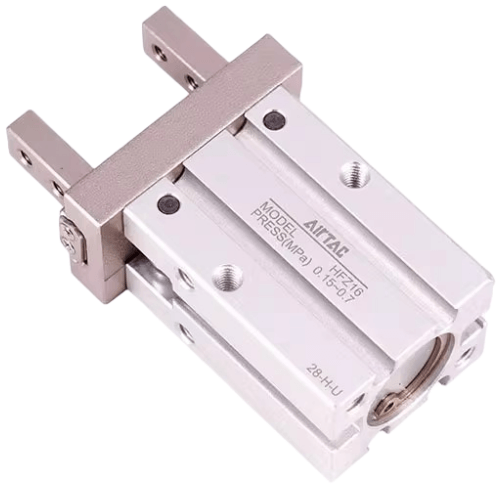

Airtac HFZ Parallel Type Pneumatic Gripper HFZ6B
$123.26
Regular price
$130.76
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFZ6B
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Features an integrated linear guide design for high rigidity and precision;
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
Operation note:
Requires 5μm filtered air supply with ISO VG32 turbine oil mist lubrication (1 drop/1m³).
Avoid side loads exceeding 3N during operation. For vacuum applications,
use model HFZ6B-V with integrated suction cup mounts.
2、Positioning pins on the guide base prevent misalignment between the rail and main body;
3、Deepened fixed reference centering holes on the body enhance mounting accuracy and ensure consistent repositioning during repeated disassembly/reassembly;
4、Customizable initial gripping positions cater to diverse operational conditions based on client-specific requirements.
Category: Parallel Grippers | Brand: Airtac | Series: HFZ
AirTAC HFZ Parallel Pneumatic Gripper HFZ6B Specifications
- Model: HFZ6B Series (HFZ6B-10/15/20 variants)
- Type: Parallel jaw movement with dual piston design
- Gripping force: 10N/15N/20N (model dependent)
- Stroke per jaw: 2mm standard (customizable up to 8mm)
- Operating pressure: 0.2-0.7 MPa
- Port size: M5 (1/8" NPT optional)
- Material: Aluminum alloy body, NBR seals
- Temperature range: -10℃ to 80℃
- Repeat accuracy: ±0.02mm
- Weight: 0.25kg (bare gripper), 0.32kg (with accessories
- Dimensions: 60mm(L) × 34mm(W) × 25mm(H) (closed state)
- Max jaw speed: 50-100mm/s (pressure dependent)
- Mounting pattern: 20mm spaced M3 threaded holes
High-precision parallel gripper featuring anti-rotation guide rods and wear-compensating design. Optimized for delicate part handling with built-in shock absorption chambers. Compatible with ISO 9409-1 mounting interfaces for robotic integration.
Typical Applications:
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Watch movement assembly automation
- Micro-motor shaft handling systems
- Optical lens sorting devices
Operation note:
Requires 5μm filtered air supply with ISO VG32 turbine oil mist lubrication (1 drop/1m³).
Avoid side loads exceeding 3N during operation. For vacuum applications,
use model HFZ6B-V with integrated suction cup mounts.
Common Accessories:
- Custom jaw plates (silicone/PTFE/aluminum)

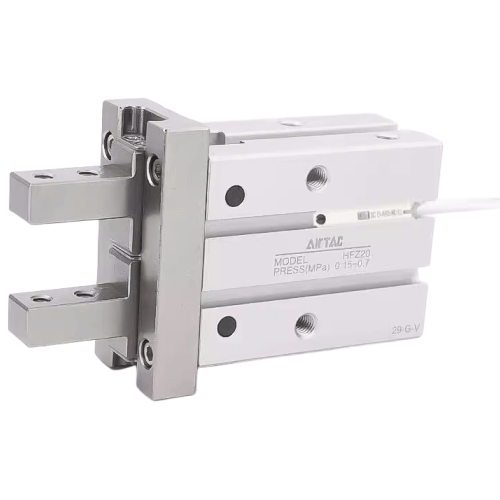

- Magnetic position sensor kit (5V/24V options)
- Anti-vibration mounting brackets
- Quick-disconnect pneumatic couplers
| Property | Property Value |
|---|---|
| sku | HFZ6B |
| Gripper Optional Types | Side-mounted |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <6mm> |
| Stroke | <3mm> |
