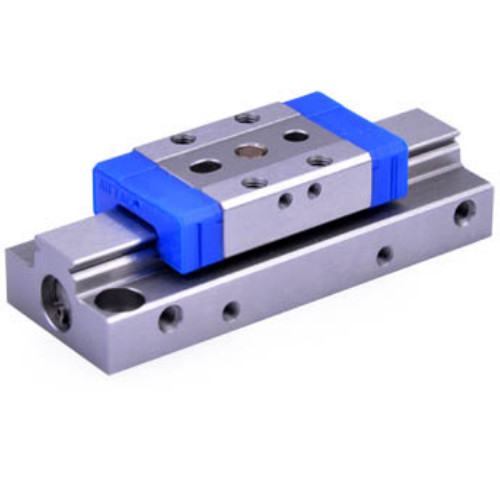

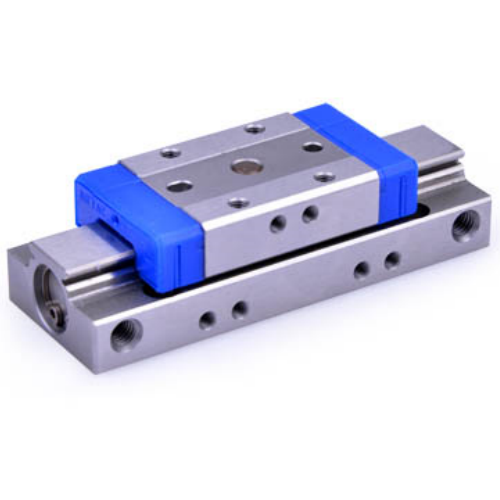

Airtac HGS Micro Precision Slide Table Cylinder HGS8X5SJ
$213.52
Regular price
$221.02
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HGS8X5SJ
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Light rail system constructed with special stainless steel for enhanced rigidity and corrosion resistance.
2、High-strength alloy steel quick-connect pins ensure superior wear resistance and extended service life.
3、Optional stroke adjustment mechanism compatible with direct replacement of hydraulic actuators.
4、Precision-ground rails deliver exceptional linear accuracy (±0.03mm) and non-rotation stability.
5、Comprehensive series configuration with high-strength optional accessories for customized solutions.
6、Integrated positioning holes and adjustment grooves optimize installation precision while maintaining positioning consistency during repeated disassembly.
（For custom stroke requirements exceeding standard specifications, please consult our engineering team）
Category: Precision Slide Cylinder | Brand: AIRTAC | Series: HGS
Operation note:
Lubricate with ISO VG32 turbine oil before initial use. Avoid side load exceeding 2N.
For vacuum applications, use optional vacuum-rated seals (HGS8X5SJ-V series).
2、High-strength alloy steel quick-connect pins ensure superior wear resistance and extended service life.
3、Optional stroke adjustment mechanism compatible with direct replacement of hydraulic actuators.
4、Precision-ground rails deliver exceptional linear accuracy (±0.03mm) and non-rotation stability.
5、Comprehensive series configuration with high-strength optional accessories for customized solutions.
6、Integrated positioning holes and adjustment grooves optimize installation precision while maintaining positioning consistency during repeated disassembly.
（For custom stroke requirements exceeding standard specifications, please consult our engineering team）
Category: Precision Slide Cylinder | Brand: AIRTAC | Series: HGS
AirTAC HGS8X5SJ Micro Precision Slide Table Cylinder Specifications
- Model: HGS8X5SJ
- Type: Compact guided slide cylinder (double rod)
- Bore size: 8mm
- Stroke: 5mm (Customizable 1-50mm)
- Operating pressure: 0.05-0.7 MPa
- Temperature range: 0℃ to 60℃
- Port size: M3x0.5 push-in fitting
- Cushion type: Adjustable rubber bumper
- Repeat positioning accuracy: ±0.01mm
- Max speed: 500mm/s
- Mounting style: Through-hole base mounting
- Body material: Anodized aluminum alloy
- Seal material: NBR/PU hybrid seals
- Weight: 85g ±2g
- Dimensions: 52mm(L) × 20mm(W) × 19.5mm(H)
Ultra-compact linear actuator combining cylinder and guide mechanism, featuring precision-ground stainless steel shafts (φ4mm) and low-friction brass bushings. Integrated T-slot design allows direct mounting of sensors or tooling plates. Requires ISO 8573-1 class 3 filtered air.
Typical Applications:
- Micro-pipetting systems in pharmaceutical labs
- PCB component insertion machines
- Ophthalmic laser positioning stages
- Watchmaking assembly jigs
- 3D printer nozzle alignment mechanisms
Operation note:
Lubricate with ISO VG32 turbine oil before initial use. Avoid side load exceeding 2N.
For vacuum applications, use optional vacuum-rated seals (HGS8X5SJ-V series).
| Property | Property Value |
|---|---|
| sku | HGS8X5SJ |
| Bore Diameter | <8mm> |
| Stroke | <5mm> |
