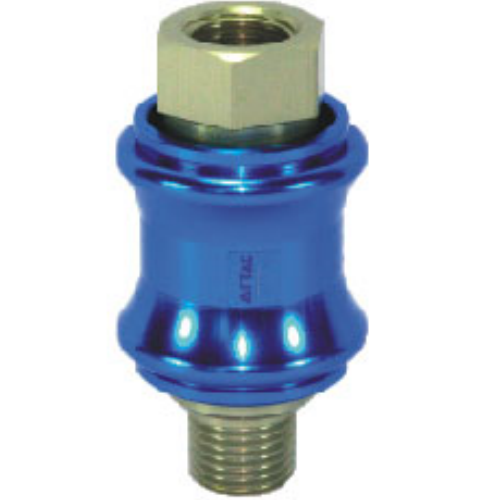

Airtac HSV Hand Slide Valve HSV06FF
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV Hand Slide Valve HSV06FF Technical Details
- Model: HSV06FF
- Type: 3-position (P.R.A) manual slide valve with detent
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure: 0.05–0.9 MPa
- Max flow capacity: 750 L/min (ANR)
- Manual operation force: ≤25N
- Weight: 220g ±5%
- Dimensions: 50mm(L) × 35mm(W) × 25mm(H)
- Body material: Aluminum alloy (hard anodized)
- Seal material: Fluororubber (FKM) standard (NBR optional)
- Temperature range: -10℃ to 80℃ (FKM) / -20℃ to 70℃ (NBR)
- Port thread depth: 10mm (minimum engagement)
- Cycle life: ≥500,000 operations
Mechanical override valve with positive center position lock, designed for manual pneumatic system intervention. Features zero-backlash lever action and wear-resistant PTFE guides. The hardened stainless steel shaft prevents deformation during high-cycle operations. Requires 5μm filtered dry air (dew point -20℃ below ambient).
- Emergency override in automated production lines
- Maintenance bypass in hydraulic/pneumatic hybrid systems
- Manual mode activation for robotic grippers
- Safety isolation during equipment troubleshooting
- Mobile machinery requiring manual pneumatic control
Installation guidelines:
Mount in accessible locations with lever movement clearance ≥60mm.
Lubricate slide rail with silicone grease (ISO VG 1 grade) every
50,000 cycles. Avoid side-loading during lever operation.
Critical note:
Do not use as flow control valve - sudden pressure drops may cause
condensation icing. Always install downstream moisture separator
when ambient humidity exceeds 60% RH.
| Property | Property Value |
|---|---|
| sku | HSV06FF |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
