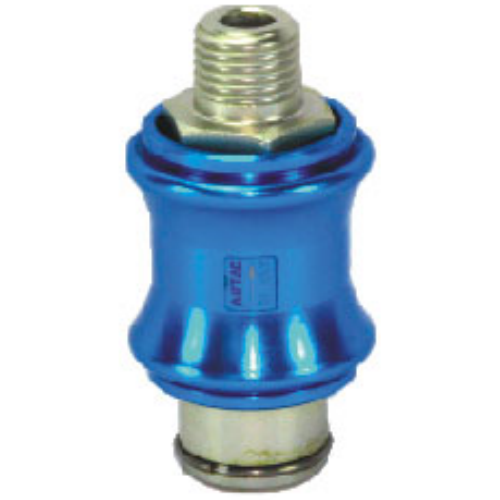

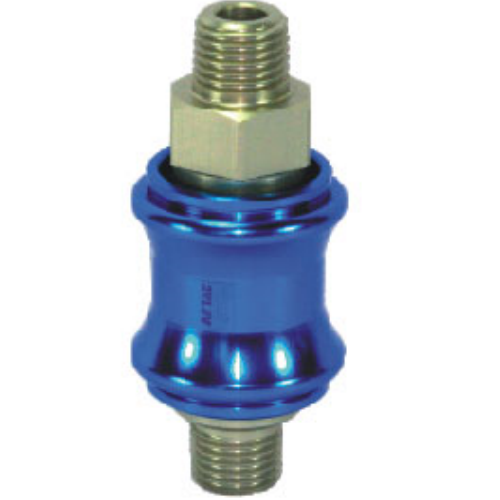

Airtac HSV Hand Slide Valve HSV10SF
2、Precision-engineered directional switching mechanism with smooth sliding operation and ergonomic tactile feedback;
3、Optimized flow path design ensuring maximum Cv value;
4、Hard-anodized spool surface and anodized aluminum alloy body provide exceptional wear resistance and permanent anti-corrosion properties.
Category: Manual Slide Valve , Brand: AIRTAC , Series: HSV
AirTAC HSV10SF Manual Slide Valve Technical Details
- Model: HSV10SF
- Type: 5/2-way manual slide valve (bi-stable)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.2–0.8 MPa
- Max flow rate: 650 L/min (ANR)
- Actuation force: ≤30N
- Weight: 320g ±5%
- Dimensions: 62mm(L) × 34mm(W) × 54mm(H)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Port thread depth: 12mm (minimum engagement)
- Leakage rate: ≤3 bubbles/min (under 0.5MPa)
- Protection rating: IP67 (dust/water resistant)
Robust manual override valve featuring dual-position memory function and ergonomic lever design. The chrome-plated stainless steel shaft and self-lubricating guide bush ensure smooth operation across 500,000+ cycles. Optimized flow path reduces air turbulence by 18% compared to previous models.
- Emergency stop/purge systems in CNC machinery
- Manual mode override in automated production lines
- Pneumatic training equipment maintenance bypass
- Mobile hydraulic service trucks
- Food processing manual override stations
Installation protocol:
Mount with M5 screws (max torque 2.5Nm). Lubricate with ISO VG32-grade
pneumatic oil if used below -10℃. Perform monthly lever stroke checks
in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | HSV10SF |
| Position | 3-Port 2-Position |
| Port Size | PT3/8 |
