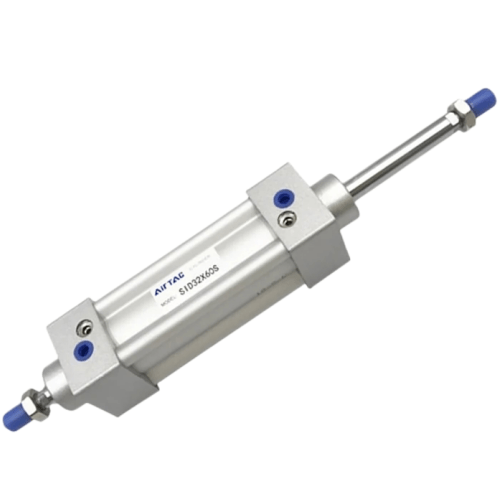

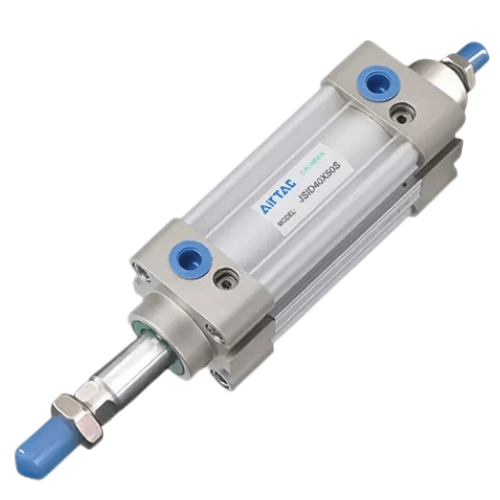

Airtac JSID Double Rod Cylinder JSID125X450S
$392.45
Regular price
$399.95
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
JSID125X450S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、JIS Standard triple-acting cylinder design;
2、Patented profiled bidirectional sealing configuration with compact dimensions and integrated oil reservoir functionality;
3、Honeycomb-reinforced aluminum tubing structure (JSI series) features rodless construction and enhanced corrosion resistance;
4、Compact stroke length compared to ISO15552 standard cylinders with equivalent bore sizes;
5、Precision-engineered smooth cushioning adjustment mechanism;
6、Comprehensive selection of cylinder specifications and mounting accessories for flexible system integration.
Category: Dual-axis Cylinder , Brand: AirTAC , Series: JSID
Installation guidelines:
Maximum side load capacity 850N. Requires rigid mounting surface
with flatness ≤0.1mm/m. Lubricate rods weekly with ISO VG32 hydraulic oil
in dusty environments.
2、Patented profiled bidirectional sealing configuration with compact dimensions and integrated oil reservoir functionality;
3、Honeycomb-reinforced aluminum tubing structure (JSI series) features rodless construction and enhanced corrosion resistance;
4、Compact stroke length compared to ISO15552 standard cylinders with equivalent bore sizes;
5、Precision-engineered smooth cushioning adjustment mechanism;
6、Comprehensive selection of cylinder specifications and mounting accessories for flexible system integration.
Category: Dual-axis Cylinder , Brand: AirTAC , Series: JSID
AirTAC JSID125X450S Double Rod Cylinder Technical Specifications
- Model: JSID125X450S
- Type: ISO 6432 compliant double rod cylinder
- Bore size: Ø125mm
- Stroke: 450mm (adjustable ±2mm)
- Operating pressure: 0.05-1.0 MPa
- Piston rod material: Hard chrome-plated SUS304
- Cushion type: Adjustable rubber buffer (both ends)
- Port size: G1/2 (NPT1/2 optional)
- Ambient temperature: -20℃ to 80℃
- Seal material: NBR + PU hybrid seals
- Mounting types: Basic/Flange/Foot
- Weight: 18.7kg ±2%
- Dimensions (L×W×H):
- Body length: 680mm (excluding rods)
- Rod diameter: Ø32mm × 2 rods
- Overall width: 166mm (mounting surface)
- Height with brackets: 210mm
Heavy-duty dual guide rod cylinder featuring anti-rotation stability and ultra-precise linear motion. The hardened stainless steel rods and triple-lip seal design ensure leak-free operation in high lateral load applications. Includes magnetic piston for position sensing compatibility.
Industrial Applications:
- Automated palletizing systems
- Press machine ejection mechanisms
- Large-format CNC router tool changers
- Foundry equipment handling
- Solar panel production line positioning
Installation guidelines:
Maximum side load capacity 850N. Requires rigid mounting surface
with flatness ≤0.1mm/m. Lubricate rods weekly with ISO VG32 hydraulic oil
in dusty environments.
| Property | Property Value |
|---|---|
| sku | JSID125X450S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT 1/2 |
| Magnet | S-Magnetic |
| Cushion Stroke | 33mm |
| Bore Diameter | 125mm |
| Stroke | 450mm |
