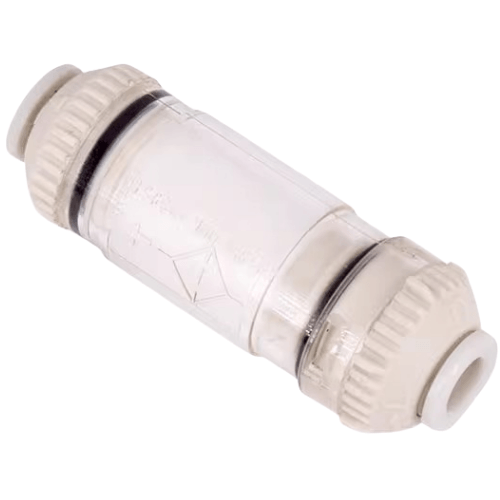

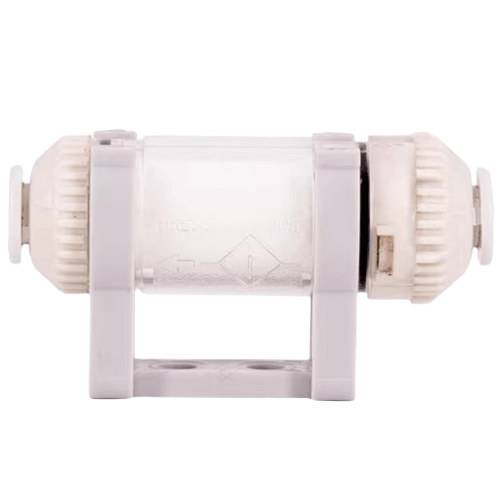

Airtac KZFC Vacuum Filter X-KZFC10004B
AirTAC X-KZFC10004B Vacuum Filter Technical Specifications
- Model: X-KZFC10004B
- Type: Compact vacuum filter with auto-drain
- Maximum Flow Rate: 100 L/min
- Filtration Grade: 40μm
- Housing Material: Aluminum alloy (anodized)
- Filter Element: Sintered stainless steel (replaceable)
- Seal Material: NBR rubber
- Operating Pressure: -100kPa ~ 0.8MPa
- Temperature Range: -20℃ to 60℃
- Port Connection: PT1/4 (G1/4 optional)
- Weight: 0.45kg ±5%
- Dimensions: 75mm(L) × 65mm(W) × 95mm(H)
- Drain Type: Manual/auto hybrid drain valve
- Moisture Separation Efficiency: ≥85% @ 0.5MPa
High-efficiency vacuum line filter designed for industrial automation systems, featuring dual-stage filtration with cyclone separation technology. The anti-corrosion aluminum housing integrates a visible bowl for debris monitoring. Optimized flow path reduces pressure drop by 15% compared to standard models.
- Vacuum gripping systems in packaging machinery
- PCB handling equipment vacuum circuits
- Medical device manufacturing cleanrooms
- Automated material sorting systems
- Lithium battery production line vacuum pick-and-place
- Printing press sheet feeding mechanisms
Installation note:
Install vertically within 500mm downstream of vacuum generator.
Replace filter element every 2,000 operational hours or when bowl contamination reaches 80% visibility threshold.
Use PTFE tape on threaded ports during installation.
| Property | Property Value |
|---|---|
| sku | X-KZFC10004B |
