Airtac LRM Miniature Linear Guide LRM12L1X445S10AHT
$99.32
Regular price
$106.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
LRM12L1X445S10AHT
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

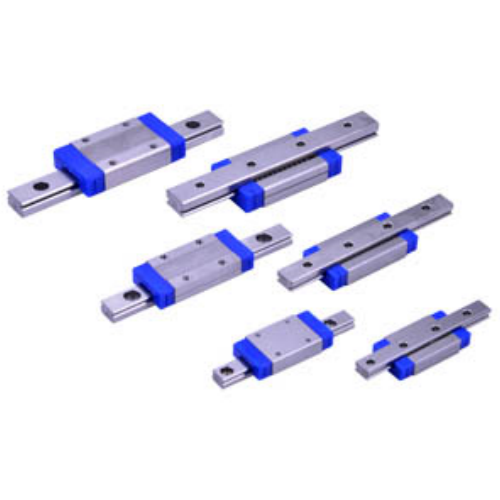

LRM Miniature Linear Guide
1. Stainless steel construction with high rigidity, enabling shared guide rails across same-type carriages
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
Mounting tip:
Ensure rail parallelism within 0.02mm/m using precision level during installation.
Use M3×6mm mounting screws torqued to 1.2N·m in cross pattern sequence.
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
AirTAC LRM12L1X445S10AHT Miniature Linear Guide Specifications
- Model: LRM12L1X445S10AHT
- Series: LRM (Miniature Linear Motion)
- Rail width: 12mm
- Carriage type: Single block L1 series
- Effective stroke: 445mm
- Ball circuit: 4-row circular arc groove design
- Dynamic load capacity (C): 1,560N
- Static load capacity (C0): 2,700N
- Precision grade: Normal grade (N)
- Preload level: Light preload (A)
- Repeat positioning accuracy: ±0.003mm
- Max speed: 5m/s
- Material: High carbon chromium bearing steel (SUJ2 equivalent)
- Surface treatment: Black oxide coating (HT)
- Sealing: Triple labyrinth seal with grease retention
- Temperature range: -20℃ to 100℃
- Weight: 1.85kg (complete assembly)
- Dimensions: 445mm(L) × 34mm(W) × 18.5mm(H)
Ultra-compact linear guide with optimized load distribution, featuring hardened raceways and corrosion-resistant treatment. The S10A suffix indicates special clearance adjustment for smooth low-friction movement. Requires periodic lubrication with ISO VG15-32 grease.
Ideal Applications:
- Precision optical alignment stages
- 3D printer X/Y axis systems
- Medical biopsy equipment slides
- SMT component placement machines
- Semiconductor wafer handling robots
Mounting tip:
Ensure rail parallelism within 0.02mm/m using precision level during installation.
Use M3×6mm mounting screws torqued to 1.2N·m in cross pattern sequence.
| Property | Property Value |
|---|---|
| sku | LRM12L1X445S10AHT |
| Slide Rail Width | 12mm |
