Airtac LRM Miniature Linear Guide LRM12L2X270S10BPT
$120.26
Regular price
$127.76
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
LRM12L2X270S10BPT
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

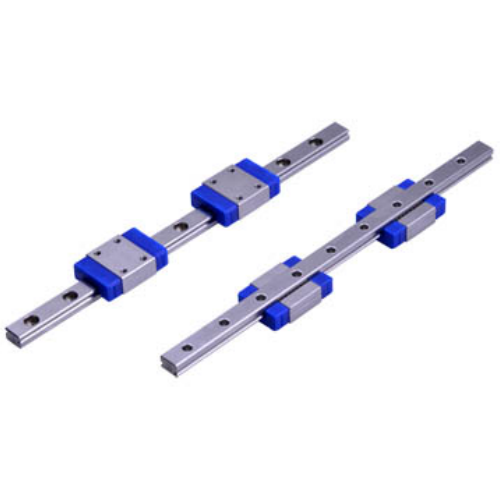

LRM Miniature Linear Guide
1. Stainless steel construction with high rigidity, enabling shared guide rails across same-type carriages
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
Mounting advice:
Use 4x M3 screws (recommended torque 0.6N·m) with parallelism ≤0.02mm/m.
Apply lithium soap-based grease (ISO VG10-32) every 100km travel.
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
AirTAC LRM12L2X270S10BPT Miniature Linear Guide Specifications
- Model: LRM12L2X270S10BPT
- Type: Compact recirculating ball linear guide
- Rail width: 12mm
- Effective stroke: 270mm
- Block length: 62mm (L2 variant)
- Dynamic load capacity (C): 0.52 kN
- Static load capacity (C0): 1.25 kN
- Precision grade: Normal class (N)
- Carriage material: Aluminum alloy (black anodized)
- Rail material: Stainless steel GCr15
- Seal type: Triple-lip rubber seals with wipers
- Operating temperature: -20℃ to 80℃
- Protection rating: IP54
- Weight: 0.85kg (complete assembly)
- Dimensions: 300mm(L) × 12mm(W) × 18mm(H) (total length includes end caps)
Ultra-slim linear motion solution combining 2.5μm repeatability with corrosion resistance. Features preloaded ball bearings (S10 suffix) for reduced backlash in bidirectional operations. The PT suffix indicates PTFE-impregnated seals for dry-running capability.
Ideal for:
- Medical device positioning stages
- Semiconductor wafer inspection equipment
- Desktop CNC router Z-axis mechanisms
- High-speed pick-and-place robots (up to 2m/s)
- Optical lens alignment systems
Mounting advice:
Use 4x M3 screws (recommended torque 0.6N·m) with parallelism ≤0.02mm/m.
Apply lithium soap-based grease (ISO VG10-32) every 100km travel.
| Property | Property Value |
|---|---|
| sku | LRM12L2X270S10BPT |
| Slide Rail Width | 12mm |
