Airtac LRM Miniature Linear Guide LRM12L2X445S10AP
$140.73
Regular price
$148.23
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
LRM12L2X445S10AP
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

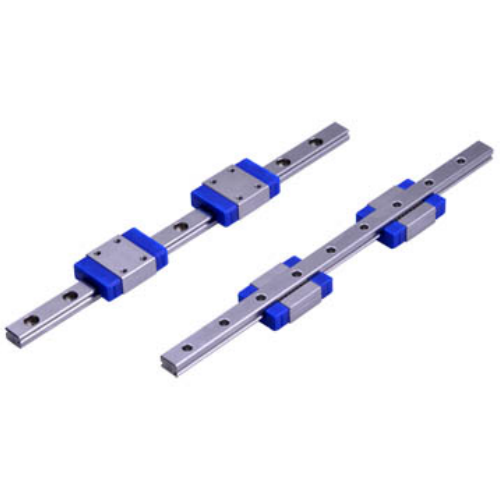

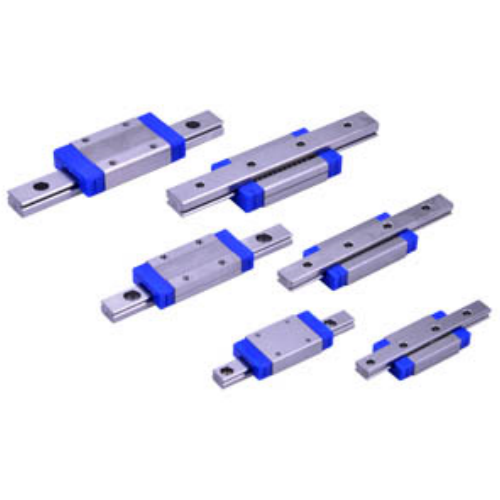

LRM Miniature Linear Guide
1. Stainless steel construction with high rigidity, enabling shared guide rails across same-type carriages
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
Installation tips:
Use torque-controlled tightening (1.2-1.5N·m for M4 screws) and align
mounting surfaces within 0.02mm/m flatness. Relubricate every 100km
travel with ISO VG10-15 grease.
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
AirTAC LRM12L2X445S10AP Miniature Linear Guide Rail Specifications
- Model: LRM12L2X445S10AP
- Series: LRM (Micro Rail Series)
- Rail width: 12mm
- Effective stroke: 445mm
- Block type: L2 (Double Carriage)
- Preload grade: S10 (Medium preload)
- Accuracy class: AP (Advanced Precision ±0.005mm/m)
- Dynamic load capacity: 1,280N
- Static load capacity: 2,650N
- Max speed: 5m/s
- Material: Carbon steel with black oxide coating
- Seal type: Triple labyrinth seal + wiper
- Lubrication: Pre-lubricated with lithium soap grease
- Mounting hole spacing: 40mm (standard pattern)
- Temperature range: -20℃ to 80℃
- Protection rating: IP54 (dust/water resistant)
- Weight: 1.85kg (rail) + 0.32kg/carriage = 2.49kg total
- Dimensions: 445mm(L) × 28mm(W) × 16.5mm(H)
Ultra-compact linear motion solution featuring twin carriages for enhanced load distribution. The hardened raceway and optimized ball circuit design deliver smooth movement with minimal friction fluctuation (±8%). Includes corrosion-resistant treatment for industrial environments.
Ideal Applications:
- High-speed pick-and-place robotic arms
- Precision optical alignment stages
- Medical diagnostic equipment slides
- Semiconductor wafer handling systems
- Desktop CNC milling machines
Installation tips:
Use torque-controlled tightening (1.2-1.5N·m for M4 screws) and align
mounting surfaces within 0.02mm/m flatness. Relubricate every 100km
travel with ISO VG10-15 grease.
| Property | Property Value |
|---|---|
| sku | LRM12L2X445S10AP |
| Slide Rail Width | 12mm |
