Airtac LRM Miniature Linear Guide LRM12N1X95S10BP
$62.10
Regular price
$69.60
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
LRM12N1X95S10BP
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

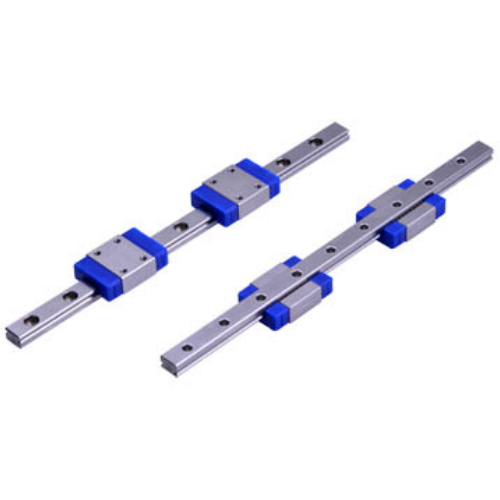

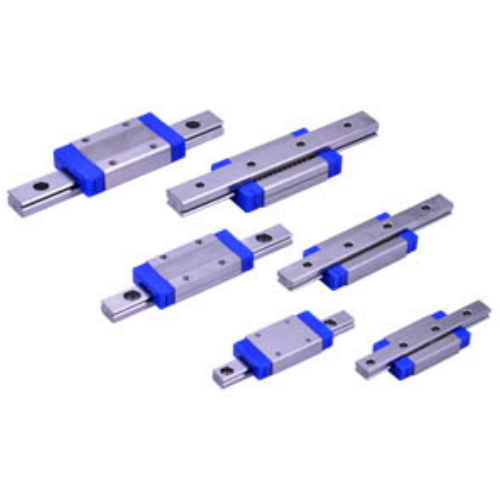

LRM Miniature Linear Guide
1. Stainless steel construction with high rigidity, enabling shared guide rails across same-type carriages
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
Mounting tip:
Use 4.5mm counterbore holes (M4 mounting screws) with 0.02mm/m
alignment tolerance. Avoid side-load impacts during assembly -
maximum permissible moment: 14.7N·m.
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
AirTAC LRM12N1X95S10BP Miniature Linear Guide Specifications
- Model: LRM12N1X95S10BP
- Series: LRM (Micro Rail Series)
- Rail width: 12mm
- Slider type: Single-flange compact design (S10)
- Effective stroke: 95mm ±0.5mm
- Accuracy grade: Normal precision (N)
- Dynamic load capacity: 1,470N
- Static load capacity: 2,940N
- Material: Carbon steel with black oxide coating
- Sealing: Dual-lip wiper + end seals (BP suffix)
- Lubrication: Pre-lubricated with AKH-LF grease
- Mounting hole spacing: 20mm × 15mm grid pattern
- Temperature range: -10℃ to 80℃
- Weight: 680g ±3% (complete set)
- Dimensions: 135mm(L) × 24mm(W) × 18.5mm(H)
- Protection rating: IP54 (standard sealing)
Ultra-compact linear motion solution featuring corrosion-resistant treatment and maintenance-free operation. The staggered ball circuit design ensures smooth movement with 0.01mm repeat positioning accuracy. Integrated mounting holes support both horizontal and vertical installations.
Ideal for:
- Desktop CNC milling machine axes
- Lab automation sample handlers
- Precision optical alignment stages
- Semiconductor wafer inspection equipment
- Medical pipetting robot arms
Mounting tip:
Use 4.5mm counterbore holes (M4 mounting screws) with 0.02mm/m
alignment tolerance. Avoid side-load impacts during assembly -
maximum permissible moment: 14.7N·m.
| Property | Property Value |
|---|---|
| sku | LRM12N1X95S10BP |
| Slide Rail Width | 12mm |
