Airtac LRM Miniature Linear Guide LRM12N2X495S10AH
$133.03
Regular price
$140.53
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
LRM12N2X495S10AH
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

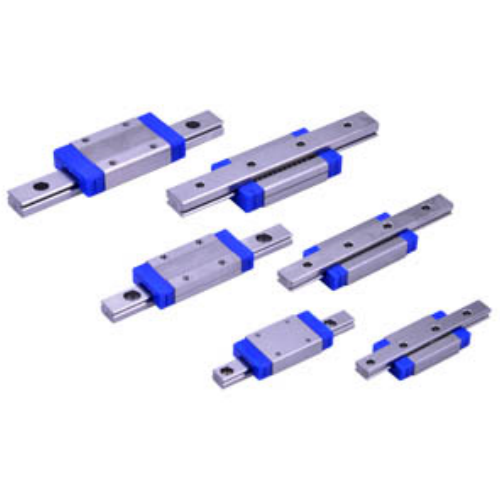

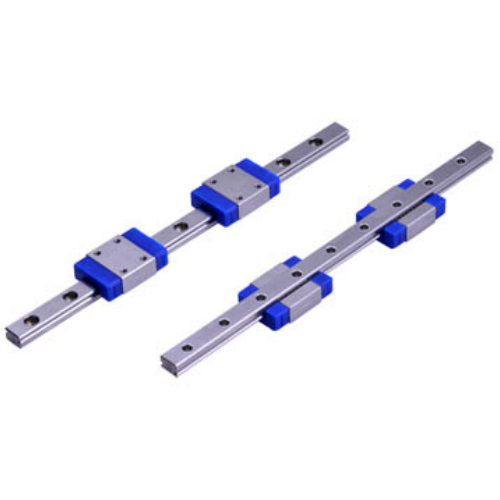

LRM Miniature Linear Guide
1. Stainless steel construction with high rigidity, enabling shared guide rails across same-type carriages
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
Installation notes:
Use torque-controlled tightening (0.8-1.2Nm for M3 screws) and align rails within 0.05mm/m straightness.
Apply lithium-based grease (NLGI #2) during assembly. Avoid side-loading beyond 15% of static capacity.
2. Anti-drop ball bearing retention mechanism for simplified installation and replacement
3. Japanese-manufactured steel balls ensuring superior sphericity and wear resistance (ISO3290 G10 compliant)
4. Enhanced oil-scraping wipers and upgraded dust-proof sealing system
5. Streamlined profile with concealed fasteners protecting sealing strips and eliminating large particulate contamination
Category: Linear Guides | Brand: AirTAC | Series: LRM
AirTAC LRM12N2X495S10AH Miniature Linear Guide Specifications
- Model: LRM12N2X495S10AH
- Type: Compact recirculating ball linear guide system
- Rail width: 12mm
- Carriage length: 35mm
- Effective stroke: 495mm
- Dynamic load rating (C): 1.5kN
- Static load rating (C0): 3.2kN
- Precision grade: Normal (N) class (±0.01mm repeatability)
- Ball diameter: 2.381mm
- Material: Aluminum alloy rail with chrome-plated steel balls
- Sealing: Dual-lip end seals + stainless steel wipers
- Mounting hole pattern: M3 threaded, 25mm spacing
- Operating temperature: -20℃ to 80℃
- Protection rating: IP54
- Weight: 0.34kg (rail: 0.22kg/m × 0.495m, carriage: 0.12kg)
- Dimensions: 495mm(L) × 12mm(W) × 15mm(H)
Ultra-slim linear motion solution combining high rigidity with minimal space requirements. Features corrosion-resistant anodized rails and pre-loaded ball bearings for smooth operation. Includes mounting reference edges for precision alignment. Compatible with cleanroom environments.
Typical Applications:
- Precision laboratory automation stages
- Medical imaging equipment positioning
- Semiconductor wafer handling robots
- 3D printer X/Y axis systems
- Optical lens adjustment mechanisms
Installation notes:
Use torque-controlled tightening (0.8-1.2Nm for M3 screws) and align rails within 0.05mm/m straightness.
Apply lithium-based grease (NLGI #2) during assembly. Avoid side-loading beyond 15% of static capacity.
| Property | Property Value |
|---|---|
| sku | LRM12N2X495S10AH |
| Slide Rail Width | 12mm |
