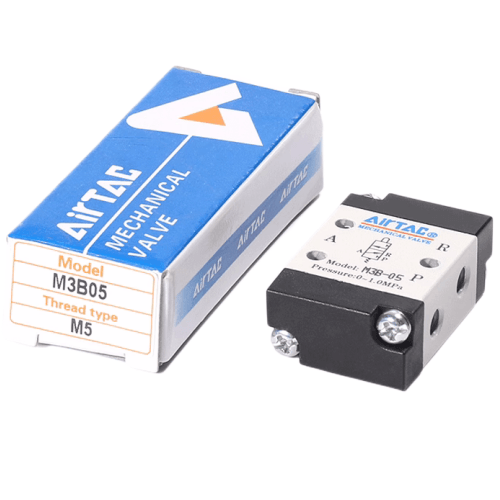

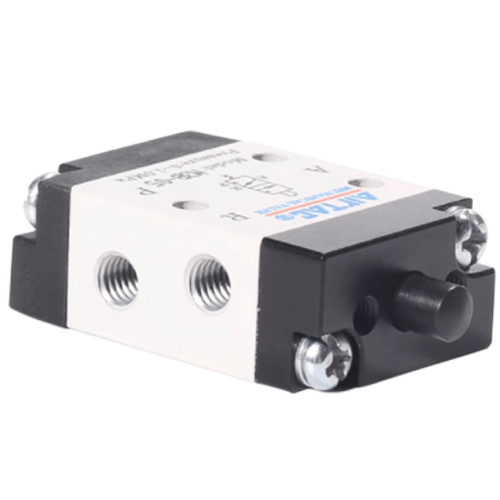

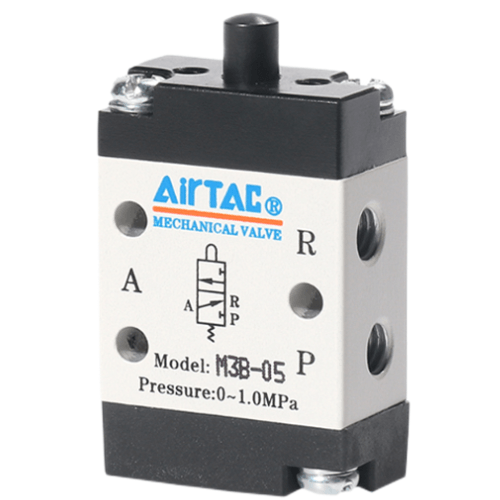

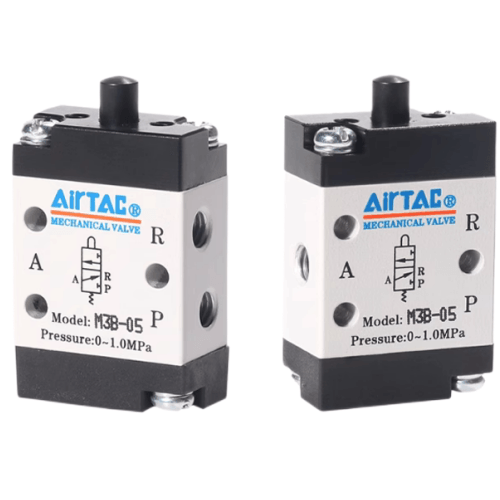

Airtac M3B Basic Type Mechanical Valve M3B21008G
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. The M3B, M3R, and M3L series utilize external mechanical actuation force, enabling position sensing or integration with limit switches;
3. M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature manual operation with diversified control head configurations for versatile application scenarios;
4. Spool-type structure ensures consistent actuation force independent of working pressure (zero back-pressure effect). Internal sealing rings provide leak-tight performance and responsive switching;
5. Lubrication-free operation;
6. Multi-position mounting capability for flexible installation;
7. M3C, M3D, M3Y, M3R, and M3I series incorporate metallic control heads for extended service life and enhanced operational reliability.
Category: Mechanical Valves , Brand: AIRTAC , Series: M3B
AirTAC M3B Basic Mechanical Valve M3B21008G Technical Details
- Model Code: M3B21008G
- Valve Type: 3/2-way mechanical operated (spring return)
- Actuation: Manual pushbutton or mechanical plunger
- Port Configuration: G1/8 (ISO228/1 standard)
- Flow Capacity: 450 NL/min (ANR)
- Operating Pressure: 0.1–0.8 MPa
- Proof Pressure: 1.2 MPa
- Ambient Temperature: -20℃ to 80℃
- Fluid Temperature: 0–60℃
- Body Material: Nickel-plated brass
- Seal Material: Heat-resistant NBR (70±5 IRHD)
- Weight: 205g ±3%
- Dimensions: 60mm(L) × 25mm(W) × 40mm(H)
- Port Thread Depth: 10mm (male threads)
- Operating Force: ≤5N pushbutton actuation
- Response Time: Instant mechanical action (no electrical delay)
Manual override valve with positive mechanical engagement, featuring brass construction with industrial-grade corrosion resistance. The direct-acting design ensures reliable switching without external power sources. Requires 50μm filtered compressed air (lubricated or non-lubricated).
- Emergency stop systems in production lines
- Manual control stations for pneumatic machinery
- Safety interlocks in material handling equipment
- Maintenance override in automated assembly systems
- Educational pneumatic training rigs
Installation Guidelines:
Mount in accessible locations for manual operation.
Use PTFE tape on male threads (do not overtighten).
For vertical mounting, position actuator button downward
to prevent debris accumulation. Allow 15mm clearance
for full plunger depression.
| Property | Property Value |
|---|---|
| sku | M3B21008G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
