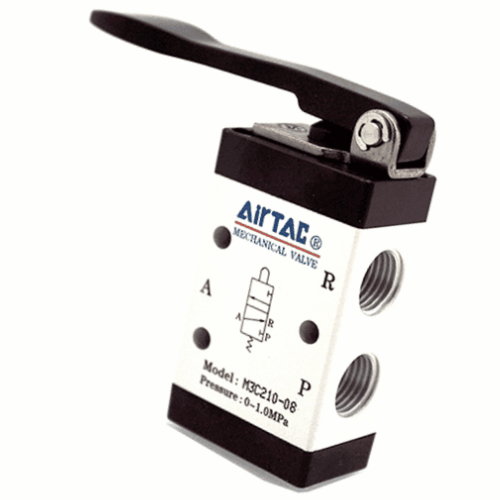

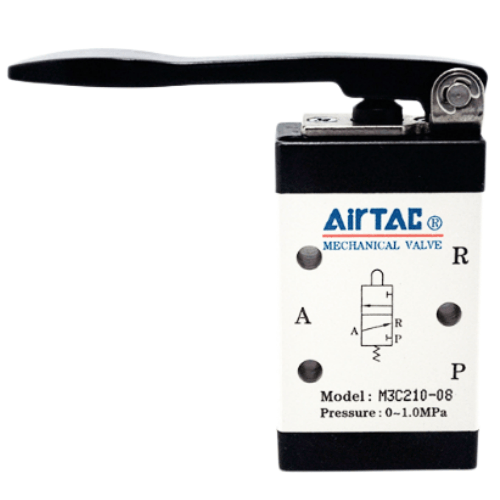

Airtac M3C Long Handle Type Mechanical Valve M3C21008
$27.88
Regular price
$35.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3C21008
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Exhaust ports integrated on valve body facilitate silencer installation for noise reduction and contamination control;
2、M3B/M3R/M3L series utilize external mechanisms to provide actuation force, suitable for position sensing or limit switch applications;
3、M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple actuator configurations for diverse operating conditions;
4、Spool-type design ensures consistent control force independent of working pressure (zero back-pressure effect), enhanced by internal seal rings for optimal sealing performance and smooth directional switching;
5、Maintenance-free lubrication system eliminates routine oiling requirements;
6、Multi-position installation capability enables versatile integration;
7、M3C/M3D/M3Y/M3R/M3I series employ metallic actuator heads for extended longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3C Long Lever Mechanical Valve
Installation note:
Lever axis must align with operator's natural hand motion plane. Apply thread sealant on port connections.
Periodic lubrication (every 6 months) recommended for lever pivot point using silicone grease.
2、M3B/M3R/M3L series utilize external mechanisms to provide actuation force, suitable for position sensing or limit switch applications;
3、M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple actuator configurations for diverse operating conditions;
4、Spool-type design ensures consistent control force independent of working pressure (zero back-pressure effect), enhanced by internal seal rings for optimal sealing performance and smooth directional switching;
5、Maintenance-free lubrication system eliminates routine oiling requirements;
6、Multi-position installation capability enables versatile integration;
7、M3C/M3D/M3Y/M3R/M3I series employ metallic actuator heads for extended longevity, reliability, and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3C Long Lever Mechanical Valve
AirTAC M3C Long Handle Mechanical Valve M3C21008 Specifications
- Model: M3C21008
- Type: 3/2-way normally closed (mechanical lever-operated)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.1–1.0 MPa
- Operating temperature: -5℃ to 80℃
- Valve body material: Anodized aluminum alloy
- Seal material: HNBR rubber (high nitrile)
- Lever stroke: 20±2mm
- Actuation force: ≤3.5N
- Weight: 215±5g
- Dimensions: 62mm(L) × 25mm(W) × 40mm(H)
- Port thread depth: 12mm
- Maximum flow rate: 750L/min (ANR)
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Manual override valve with extended 80mm stainless steel lever for precise tactile control in hard-to-reach areas. Features anti-vibration lock nut design and wear-resistant seals. Compatible with ISO 15407-1 standards. Requires 50μm filtered dry air.
Typical Applications:
- Emergency stop systems in assembly lines
- Manual override for automated packaging machinery
- Textile equipment pneumatic circuits
- Food processing plant maintenance bypass
- Construction machinery manual control stations
Installation note:
Lever axis must align with operator's natural hand motion plane. Apply thread sealant on port connections.
Periodic lubrication (every 6 months) recommended for lever pivot point using silicone grease.
| Property | Property Value |
|---|---|
| sku | M3C21008 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
