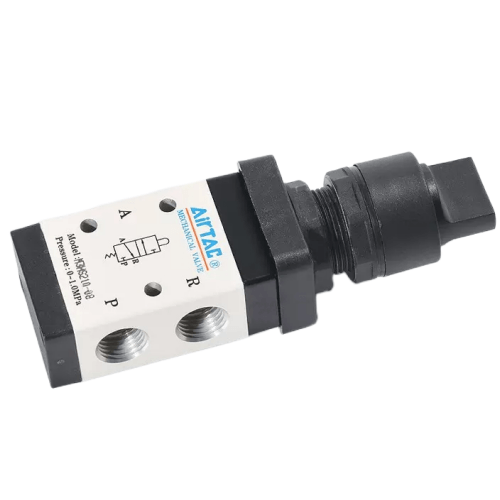

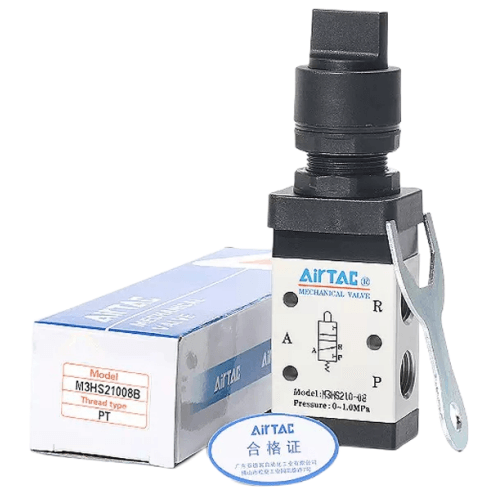

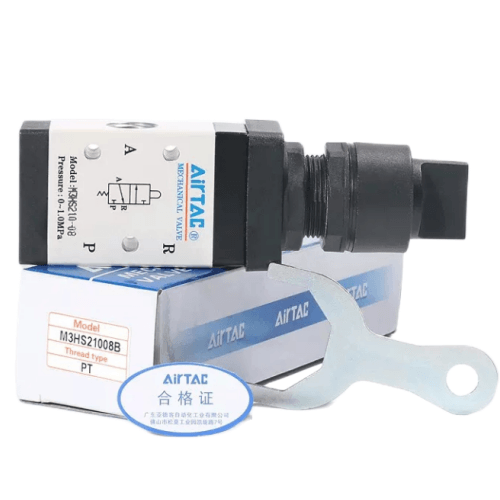

Airtac M3HS Selector Mechanical Valve M3HS21006B
$27.88
Regular price
$35.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
M3HS21006B
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Exhaust ports integrated into the main body facilitate silencer installation for noise reduction and pollution control;
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
Installation guidance:
Apply thread sealant only on male ports (not NPT threads).
For vertical mounting, install exhaust silencers downward.
Lubricate lever pivot quarterly with ISO VG32 hydraulic oil.
2. M3B/M3R/M3L series utilize externally supplied directional switching force, suitable for position detection or limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design ensures consistent control force independent of working pressure (zero backpressure effect), enhanced by internal ring sealing for reliable performance and smooth directional switching;
5. Oil-free lubrication system eliminates maintenance requirements;
6. Multi-position mounting capability ensures flexible installation options;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal actuators for extended service life and enhanced operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M3HS
AirTAC M3HS21006B Selector Mechanical Valve Technical Details
- Model: M3HS21006B (Selector Series)
- Valve type: 3-position selector valve with detent mechanism
- Port configuration: 5/3-way closed center
- Port size: PT1/4 (G1/8 optional)
- Operating pressure range: 0.15–0.9 MPa
- Max flow rate: 750 L/min (ANR)
- Actuation force: 35N ±10% (manual lever operation)
- Seal material: HNBR rubber (fluorocarbon optional)
- Temperature range: -20℃ to 80℃ (with silicone seals optional for -40℃)
- Body material: Anodized aluminum alloy (hard coat)
- Weight: 215g ±5% (including mounting hardware)
- Dimensions: 54mm(L) × 25mm(W) × 45mm(H)
- Mounting: ISO 15407-1 compliant sub-base
- Port thread depth: 9mm (minimum engagement)
Industrial-grade manual selector valve with positive center position lock, designed for pneumatic circuit configuration switching. Features double-sealed lever mechanism with dust-resistant pivot, optimized for high-cycle operations. Compatible with ISO 15407-1 valve manifolds.
Common Use Cases:
- Production line mode selection (auto/manual)
- Clamping fixture pressure path switching
- Emergency stop circuit isolation
- Pneumatic testing station flow routing
- Mobile equipment manual override systems
Installation guidance:
Apply thread sealant only on male ports (not NPT threads).
For vertical mounting, install exhaust silencers downward.
Lubricate lever pivot quarterly with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | M3HS21006B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
