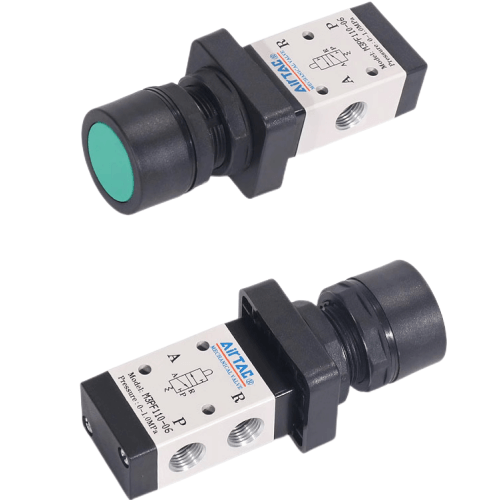

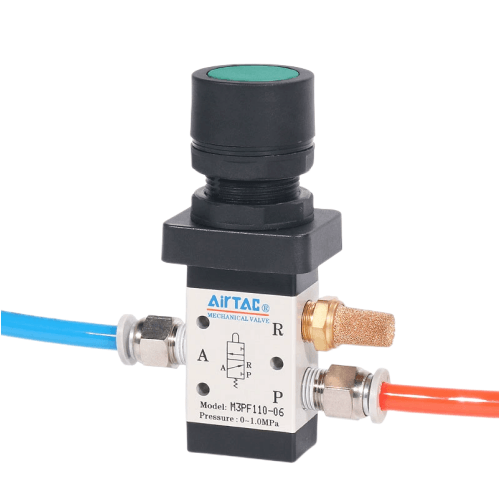

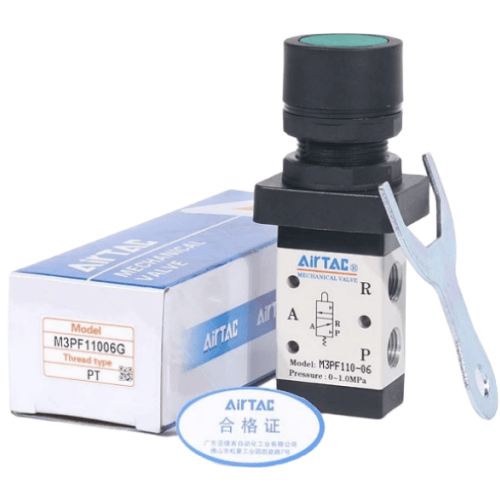

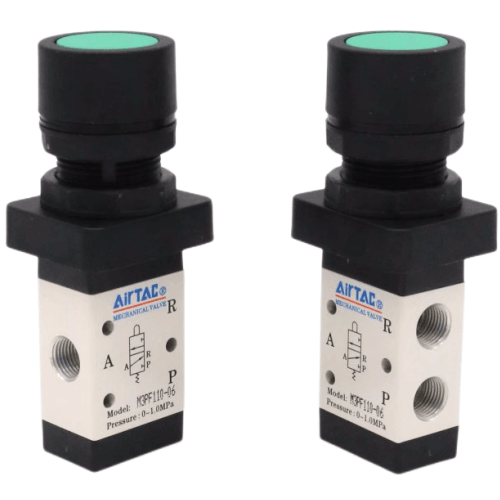

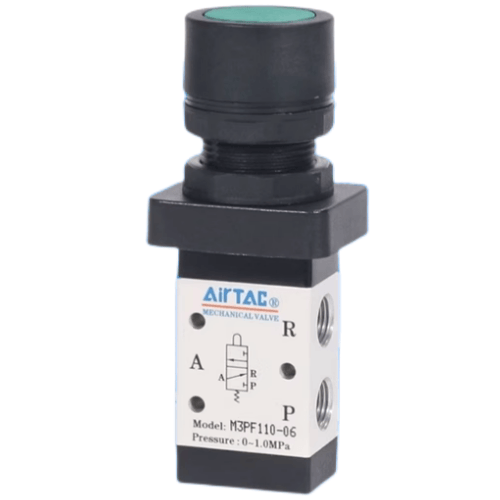

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF11006G
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF11006G Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF11006G
- Type: 3/2-way manual reset mechanical valve (push-button actuation)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.1–1.0 MPa
- Flow capacity: 450 NL/min (at 0.5 MPa)
- Body material: Anodized aluminum alloy
- Seal material: High-grade NBR (Nitrile rubber)
- Button stroke: 3.5±0.5mm
- Operating force: ≤3.5N
- Temperature range: -5℃ to 80℃
- Protection rating: IP67 (dust/water resistant)
- Weight: 185±5g
- Dimensions: 54mm(L) × 38mm(W) × 28mm(H)
- Mounting pattern: 25mm center-to-center screw spacing
- Reset type: Manual pull-back mechanism
Robust mechanical valve featuring a low-profile design with tactile feedback, engineered for emergency stop systems and manual override applications. The corrosion-resistant body incorporates a dual-seal structure with dust-proof cap, ensuring reliable operation in harsh environments. Requires manual reset after activation.
- Safety interlocks on automated production lines
- Emergency stop stations for industrial machinery
- Pneumatic system manual override controls
- Mobile equipment safety circuits
- Assembly jig positioning systems
Installation guidelines:
Mount in accessible locations with minimum 30mm front clearance for button operation.
Lubricate pivot points annually with ISO VG32-grade oil. Not suitable for continuous
cycling applications exceeding 5 operations/minute.
| Property | Property Value |
|---|---|
| sku | M3PF11006G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
