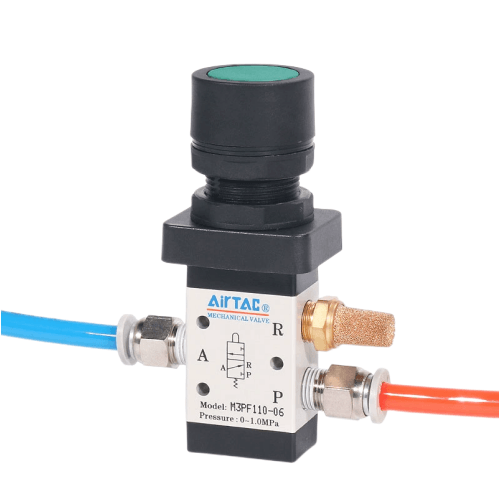

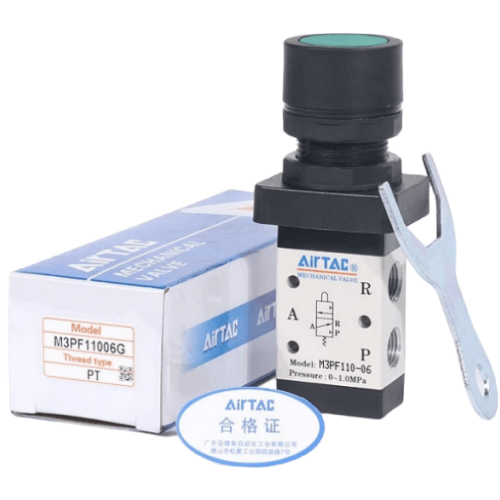

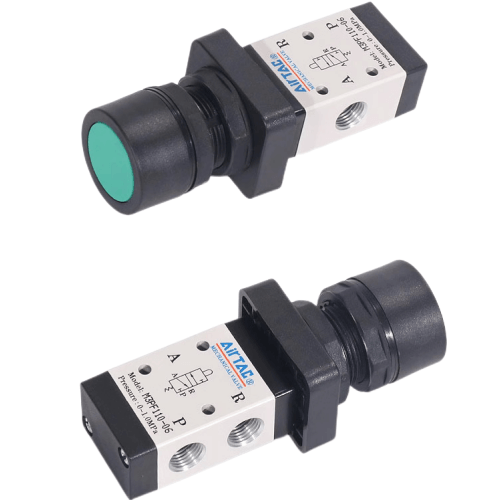

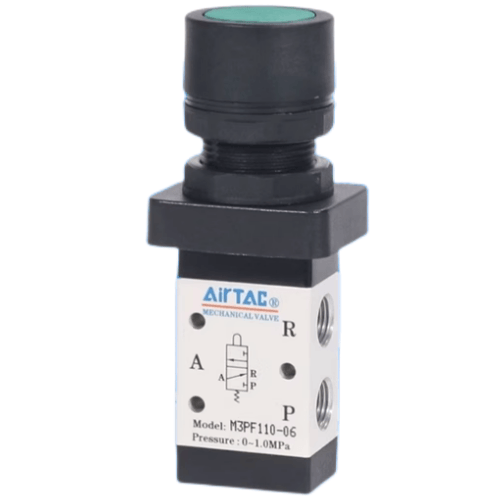

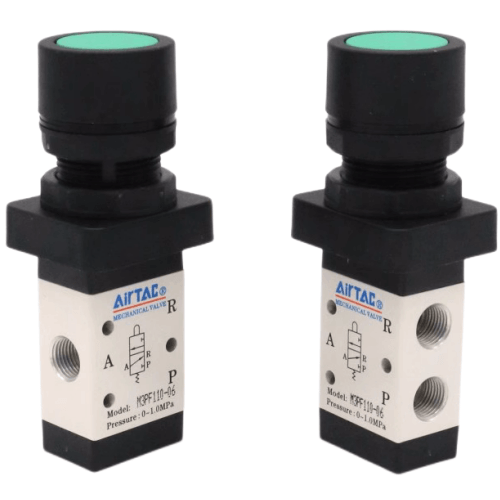

Airtac M3PF Flat Head Push Button Mechanical Valve M3PF21006B
1. Exhaust ports integrated into valve body for convenient silencer installation, effectively reducing noise emission and environmental contamination;
2. M3B/M3R/M3L series utilize external mechanism-driven directional switching forces, suitable for position sensing and limit switch applications;
3. M3C/M3D/M3Y/M3PF/M3PM/M3PP/M3PL/M3HS series feature manual operation with diverse actuator head configurations for optimized performance across operational conditions;
4. Spool-type design with pressure-independent switching force (zero backpressure effect), internal sealing rings ensure superior leakage protection and responsive directional control;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multiple mounting orientations enable flexible system integration;
7. M3C/M3D/M3Y/M3R/M3I series incorporate durable metal alloy actuator construction for enhanced longevity, reliability, and stability.
Category: Mechanical Valves | Brand: AIRPASCAL | Series: M3PF Flat-head Push Button Type
AirTAC M3PF21006B Flat-Head Push Button Mechanical Valve Specifications
- Model: M3PF21006B
- Type: 3/2-way manual reset mechanical valve (normally closed)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Body material: Anodized aluminum alloy
- Seal material: High-grade NBR rubber
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Actuation force: 3.5±0.5 kgf (manual push operation)
- Flow capacity: 450 L/min (Cv=0.45)
- Weight: 215±5g (including accessories)
- Dimensions: 52mm(L) × 38mm(W) × 68mm(H)
- Mounting style: Direct panel mounting with M4 screws
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Robust manual override valve featuring a low-profile 8mm button protrusion for space-constrained installations. The hardened stainless steel spring mechanism ensures reliable resetting, while the O-ring dampened actuator provides tactile feedback. Compatible with ISO 15407-1 standards for industrial pneumatic systems.
- Emergency stop circuits in production line machinery
- Manual override for automated packaging systems
- Safety interlocks in plastic injection molding machines
- Pneumatic fixture controls in CNC workstations
- Maintenance bypass systems for robotic arms
Installation note:
Ensure button axis alignment within ±5° of vertical. Apply thread sealant on port connections
(PTFE tape not recommended). Perform monthly lubrication of the plunger shaft with silicone-free grease.
| Property | Property Value |
|---|---|
| sku | M3PF21006B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
