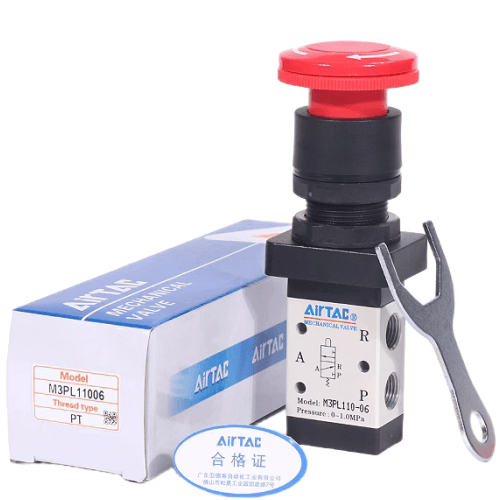

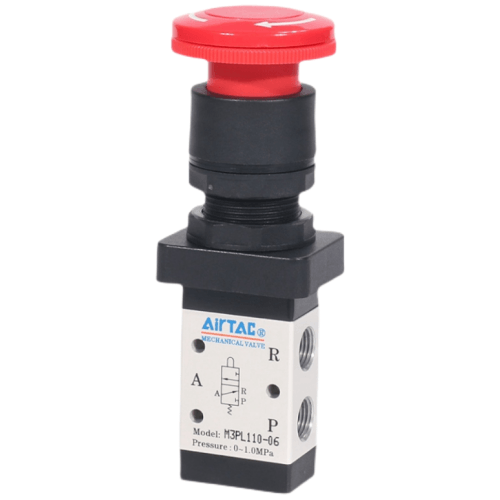

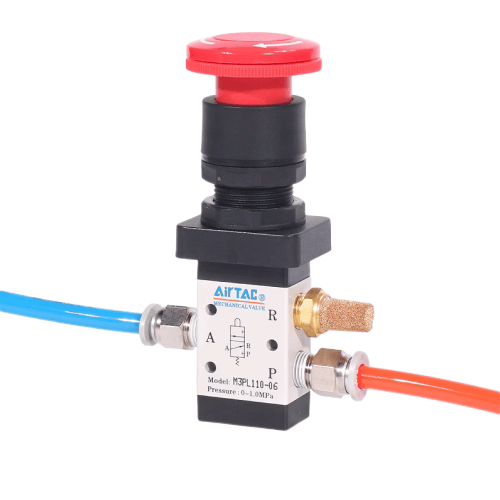

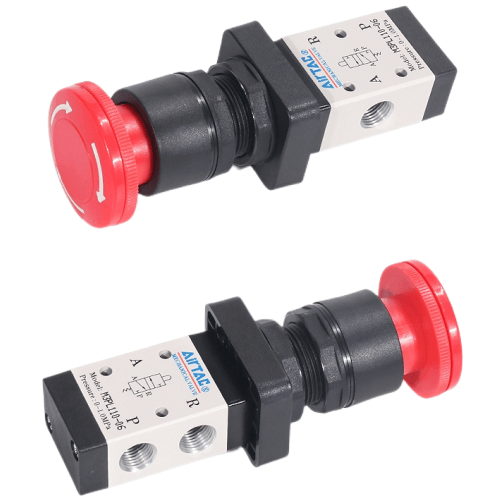

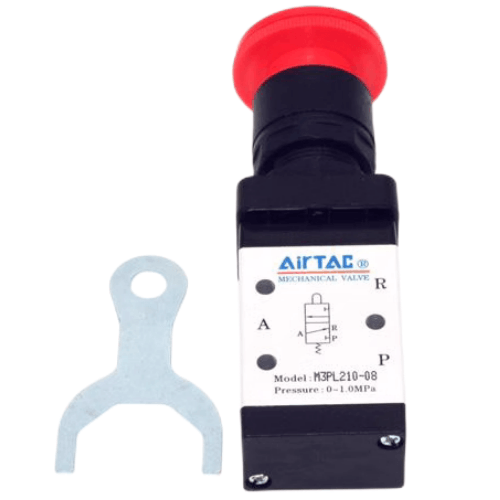

Airtac M3PL Detent Rotary Button Mechanical Valve M3PL11006
2. M3B, M3R, and M3L series utilize externally-provided shifting force for valve actuation, enabling position sensing or limit switch applications.
3. Manually actuated M3C, M3D, M3Y, M3PF, M3PM, M3PP, M3PL, and M3HS series feature multiple control head configurations optimized for diverse operating scenarios.
4. Spool-type construction with internal sealing ring ensures pressure-independent operation (backpressure-resistant), delivering reliable sealing performance and smooth directional switching.
5. Maintenance-free operation requiring no lubrication.
6. Multi-position mounting capability enables flexible installation configurations.
7. M3C, M3D, M3Y, M3R, and M3I series employ metal alloy control heads for extended service life and enhanced reliability in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: M3PL Stationary Rotary Pushbutton Type
AirTAC M3PL11006 Parked Rotary Button Mechanical Valve Specifications
- Model: M3PL11006
- Type: 3-position (P-A-B) detented rotary manual valve
- Port configuration: 1/4" NPT (G1/8 optional)
- Operating pressure range: 0.05–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Operating torque: ≤0.5 N·m
- Body material: Anodized aluminum alloy
- Seal material: HNBR (high-temp nitrile)
- Temperature range: -20℃ to 120℃ (with HNBR seals)
- Manual operation cycles: ≥500,000 rotations
- Weight: 220g ±5%
- Dimensions: 60mm(L) × 40mm(W) × 35mm(H)
- Mounting pattern: ISO 15407-1 compliant
- Protection rating: IP67 (dust/water resistant)
Industrial-grade manual override valve with precision ball detent mechanism providing tactile position feedback. Features triple chrome-plated brass shaft and wear-resistant PTFE bushings for smooth rotation. The 45° position increments ensure positive port alignment, while the ergonomic knurled knob allows glove-friendly operation.
- Emergency override in automated production lines
- Manual mode selection in hydraulic test benches
- Process control override in chemical dosing systems
- Mobile equipment maintenance bypass
- Educational pneumatic/hydraulic training rigs
Installation note:
Apply thread sealant only on male ports (not required for NPTF).
For vertical mounting, ensure exhaust port faces downward to prevent debris accumulation.
Lubricate shaft quarterly with MIL-PRF-81322 grease in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | M3PL11006 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
