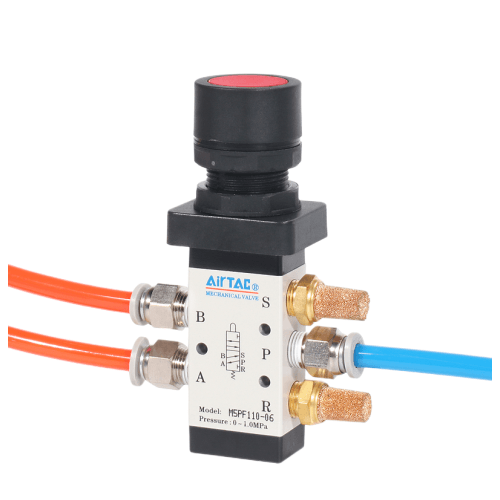

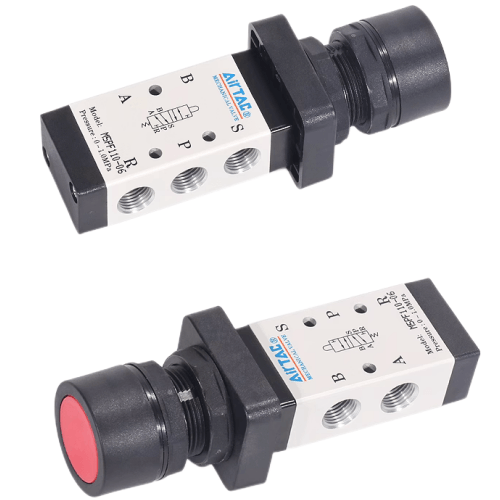

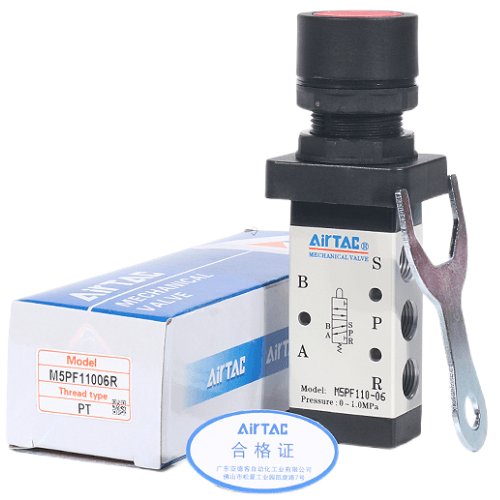

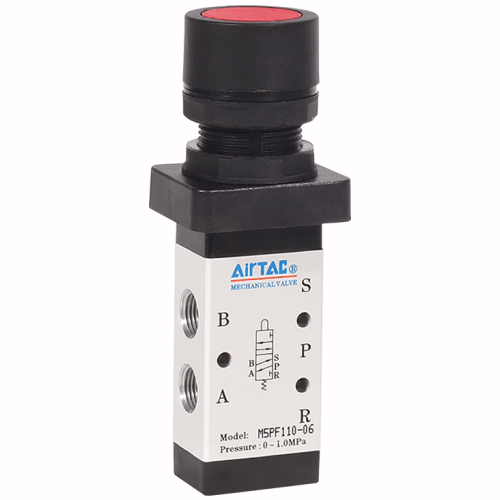

Airtac M5PF Flat Head Push Button Mechanical Valve M5PF11006G
2、M5B/M5R/M5L series utilize external mechanism-driven actuation force for reliable position sensing and limit switch applications;
3、M5C/M5D/M5Y/M5PF/M5PM/M5PP/M5PL/M5HS series feature manual actuation with multi-configuration control heads for diverse operational requirements;
4、Spool-type structure with internal ring sealing ensures pressure-independent control force (backpressure-free operation), delivering reliable sealing performance and responsive directional switching;
5、Lubrication-free operation eliminates maintenance requirements;
6、Multi-position mounting capability facilitates flexible installation and system integration;
7、Metal construction control heads in M5C/M5D/M5Y/M5R/M5L series ensure enhanced longevity with superior reliability and stability.
Category: Mechanical Valves | Brand: AirTAC | Series: M5PF Flat-Head Pushbutton Type
AirTAC M5PF11006G Flat-Head Push Button Mechanical Valve Specifications
- Model: M5PF11006G
- Type: 3/2-way manual reset mechanical valve (push button operation)
- Port size: M5 × 0.8 thread (ISO 6149 standard)
- Operating pressure: 0.05–0.8 MPa
- Max flow rate: 350 NL/min (at 0.5 MPa)
- Actuation force: 30N ± 5N
- Weight: 85g ± 2g
- Dimensions: 38mm(L) × 38mm(W) × 56mm(H)
- Body material: Nickel-plated brass
- Seal material: HNBR rubber (-20℃ to 120℃)
- Temperature range: -20℃ to 70℃ (with fluid temperature ≤60℃)
- Port orientation: Axial flow design
- Mounting: Panel mount with M20×1.5 locknut
- Protection rating: IP67 (dust/water resistant)
- Certification: RoHS compliant
Compact emergency-stop style manual valve with positive tactile feedback, featuring a 6mm stainless steel button shaft and anti-vibration lock mechanism. The dual-spring design ensures reliable resetting force (≥85% initial force retention after 100,000 cycles). Optimized flow path reduces pressure drop by 15% compared to previous generations.
- Emergency stop systems in packaging machinery
- Manual override in automated production lines
- Safety interlocks for press equipment
- Pneumatic training equipment in technical schools
- Cleanroom device controls (food/pharma industries)
Installation notes:1. Use 0.5-1.5Nm torque for panel mounting
2. Maintain ≥5mm clearance around button for emergency access
3. Lubricate with ISO VG32 pneumatic oil if used in high-cycle applications
4. Test reset force monthly in safety-critical installations
| Property | Property Value |
|---|---|
| sku | M5PF11006G |
| Position | 5 Ports 2 Position |
| Port Size | PT1/8 |
